• SIL2 Certified
• Digital Bus Output
• Weighs only 3.2 kg, reducing fatigue during prolonged operation
• IP66 protection rating; operating temperature range: -25°C to 70°C
• 433/470 MHz dual-band; wireless transmission range ≥ 150 meters; interference-free
• Customizable dual-axis joystick, buttons, and switches; choose from 3-inch, 4.3-inch, or 7-inch displays
• Smart features including ID recognition, three-axis sensors, and video feedback

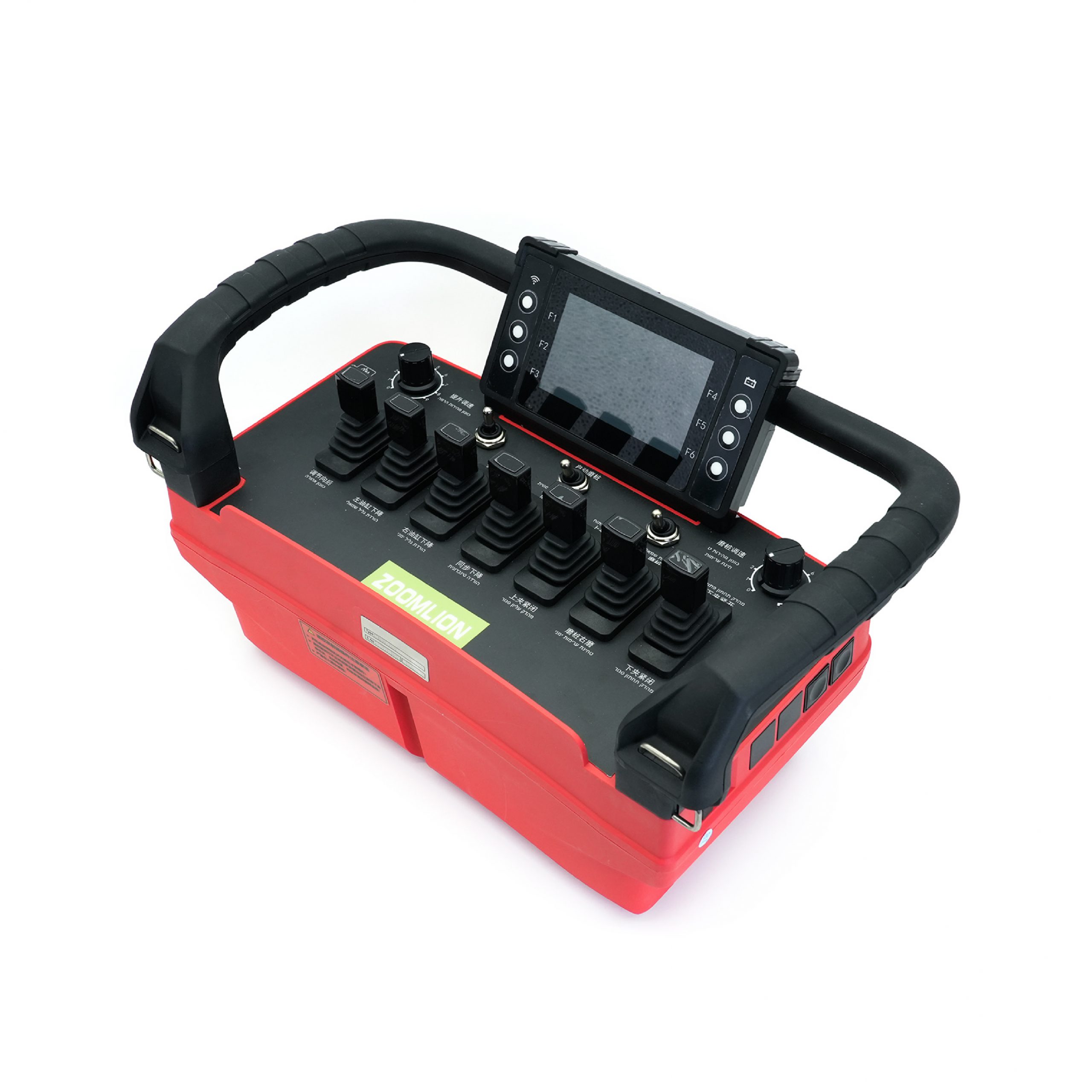

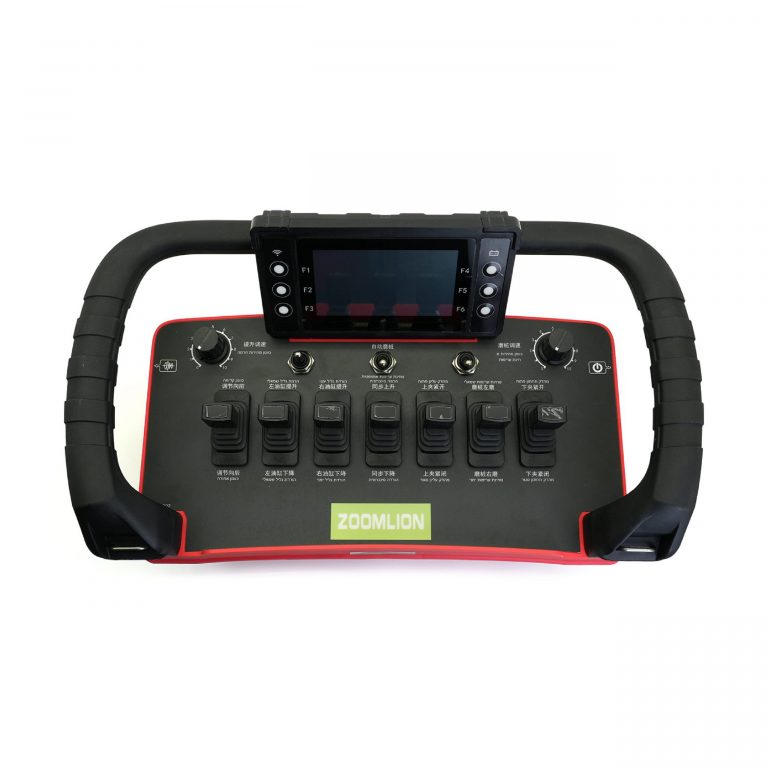

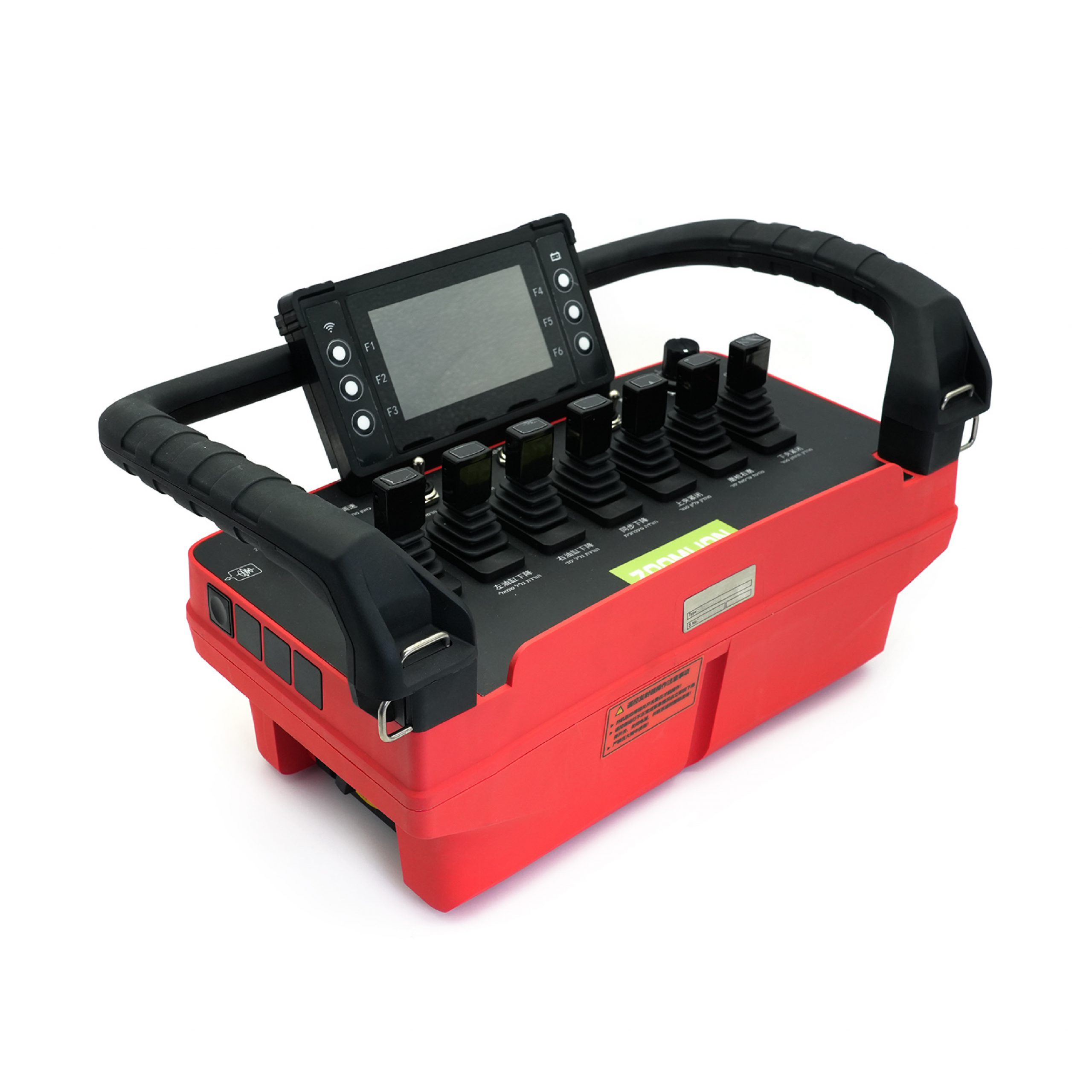

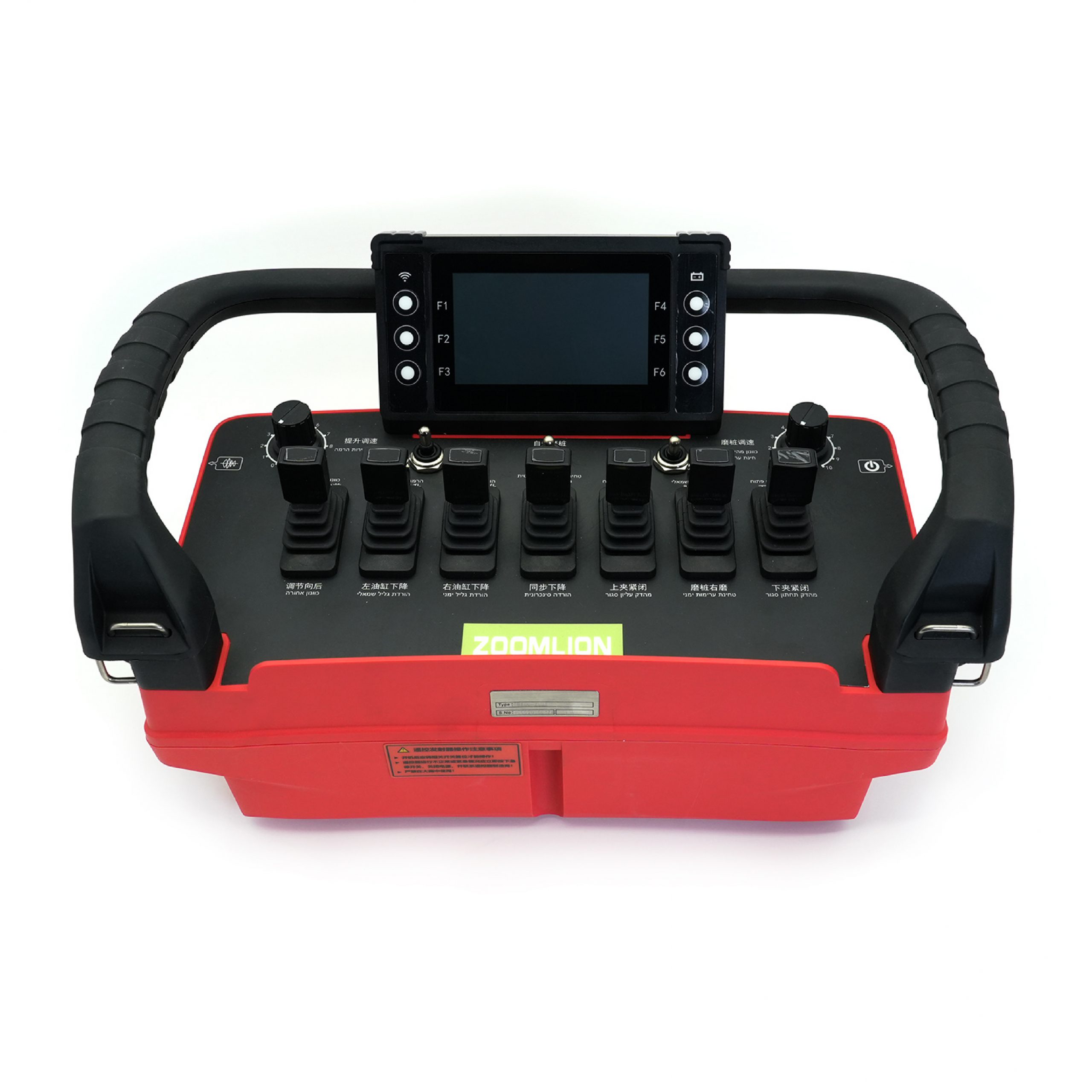

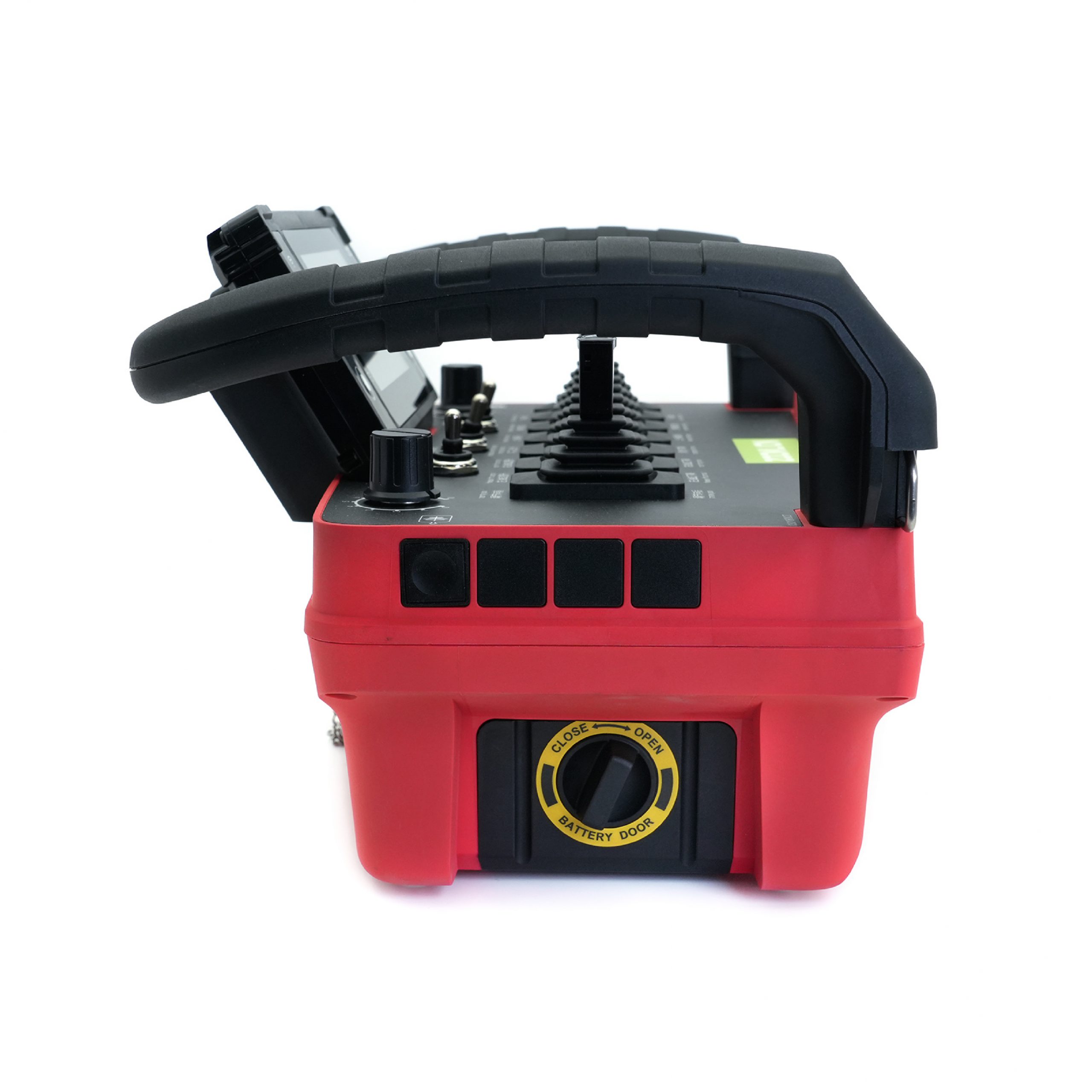

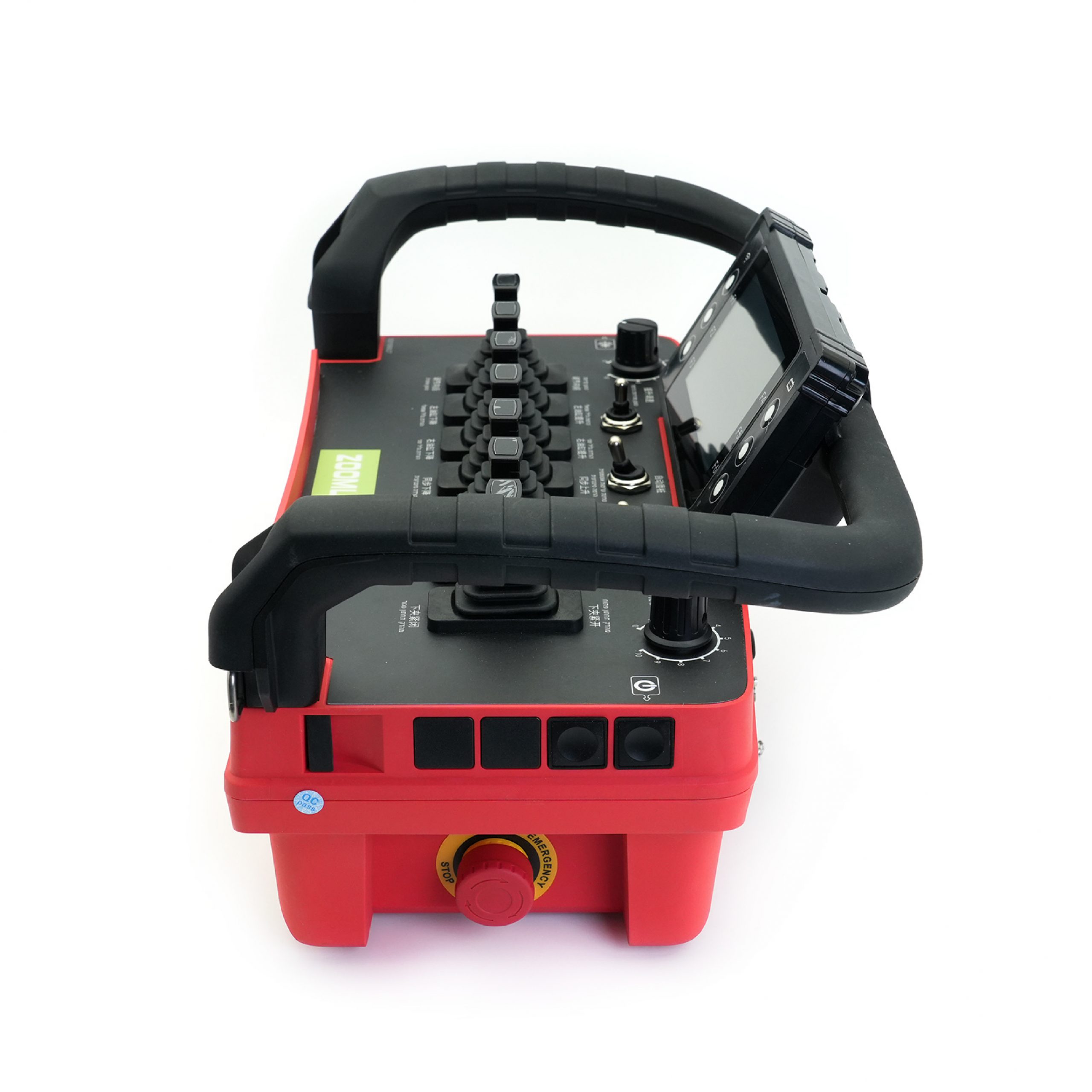

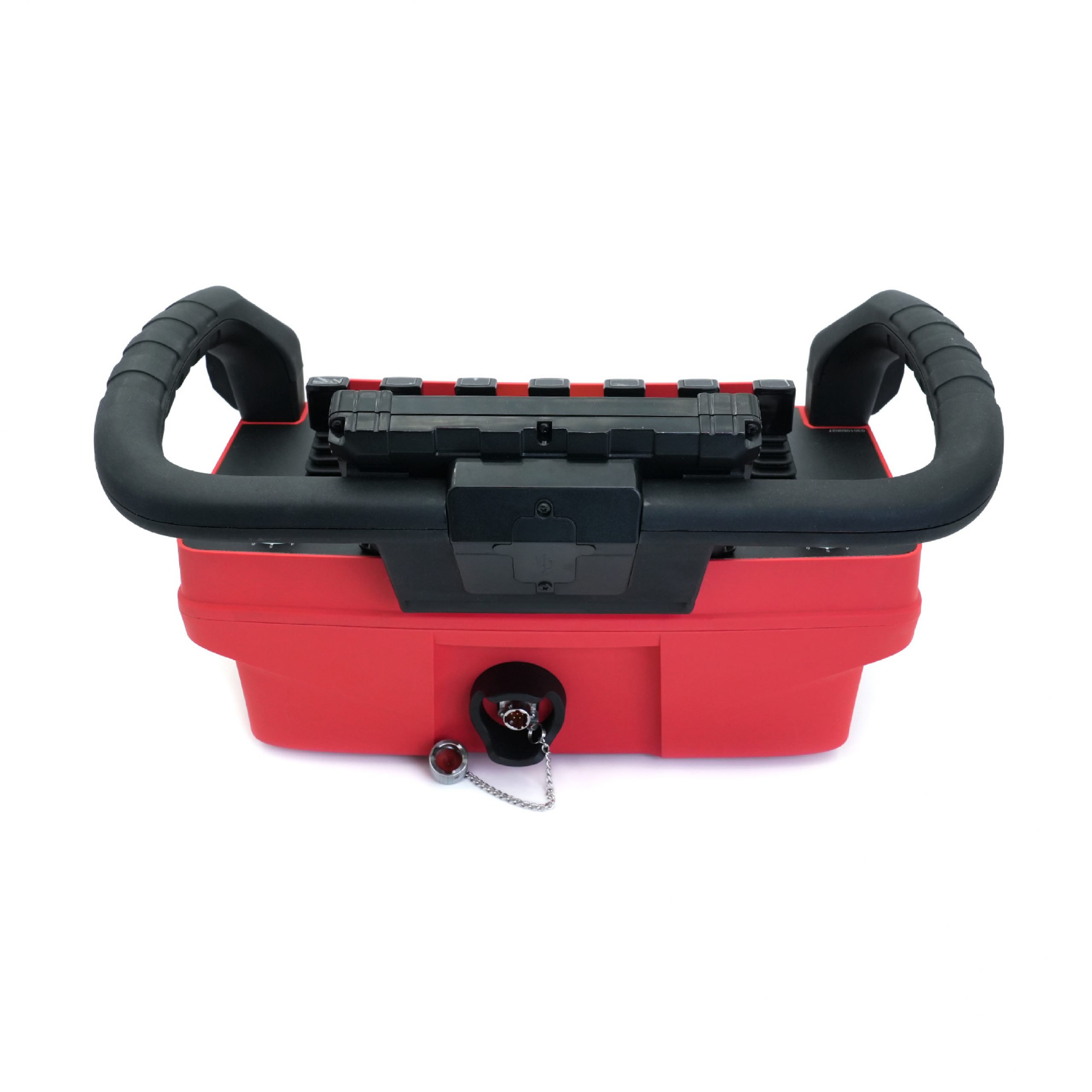

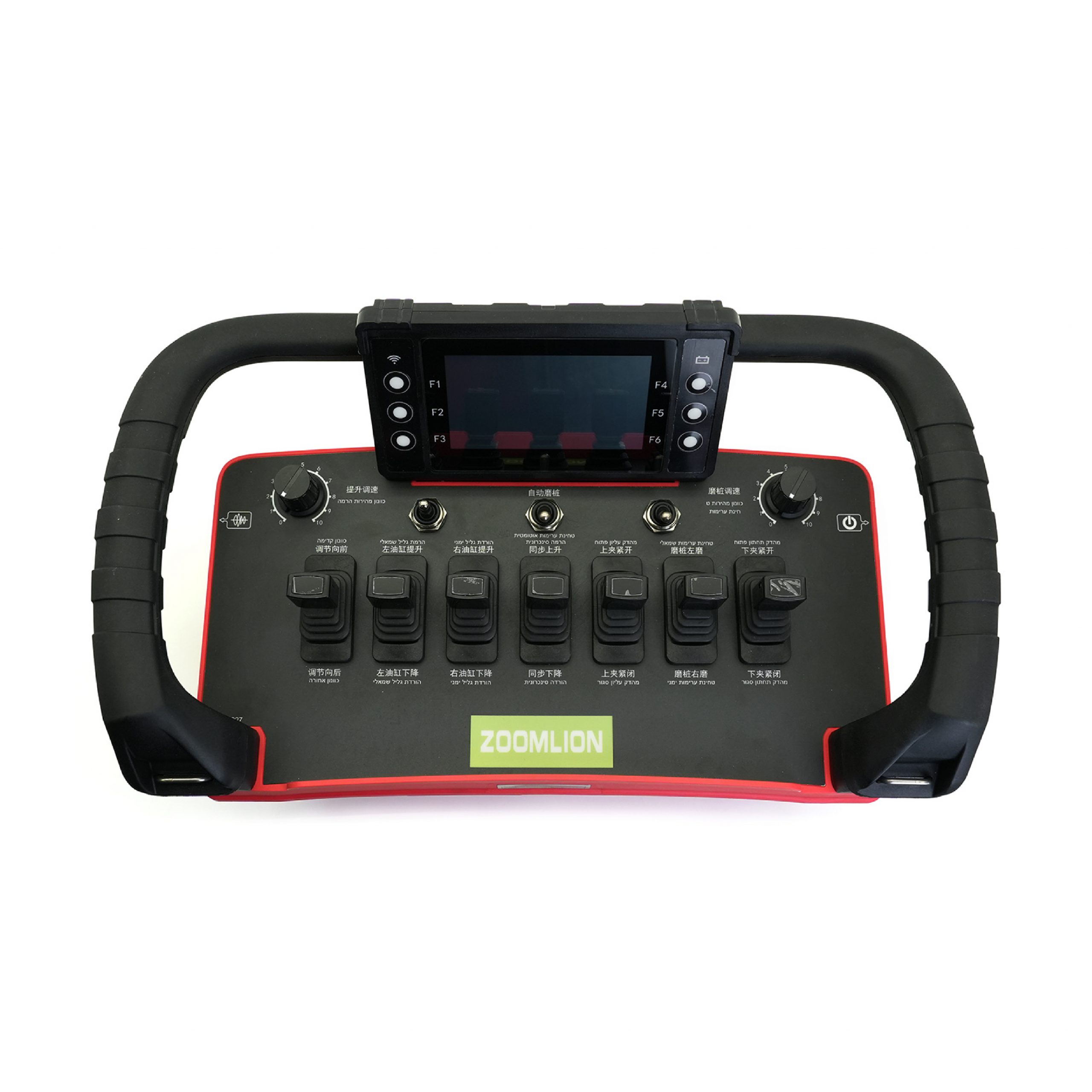

The BL300 joystick radio control is a large industrial joystick controller from Techwell’s Bull Series. BL300 joystick can be used for crane control, heavy-duty lifting, construction, and hydraulic equipment, it offers an ultra-long control range of over 150 meters, a customizable control layout, an IP66 protection rating, and OEM support. It is available with three sizes of high-definition LCD screens: 3“, 4.3”, and 7″.

Series	Shoulder and Back Type B Series
Model	BL
Size	396×234 x216 mm
Weight (excluding battery)	3.2kg
Material	Engineering Plastics
Protection Class	IP66
Power Supply
Wireless Range	≥150m
Operating Current	150mA
Transmit Power	≤10mW
Frequency Range	433 MHz Band: 427.000–436.300 MHz 470 MHz Band: 472.350–485.775 MHz
Antenna Type	built-in
Operating Temperature Range	Temperature: -25°C to 70°C Humidity: 0% to 97% RH (non-condensing)
Optional Features	Identification Card, 3-Axis Sensor, Video Feedback
Transmitter Operation Modes	Combinations of Joysticks, Toggle Switches, Pushbutton Switches, and Rotary Switches
Display	3″、4.3″、7″
Dimensional Drawing
