| Industrial Remote Control Enclosure | SED08 |
| Dimensions | 227 × 75 × 50 mm |
| Weight (excl. battery) | 0.36 kg |
| No. of Buttons | 8 |
| Material | Engineering Plastic |
| Ingress Protection | IP66 |
| Button Type | Single-speed / Dual-speed |
| Power Supply | 2 × AA batteries (3V) / Rechargeable Li-ion battery (4.2V) |
| Wireless Range | ≥ 150 m |
| Current Consumption | Standby: 5 μA; Average: 10 mA |
| Transmit Power | 10 mW |
| Frequency Range | 429 MHz – 459 MHz |
| Antenna | Internal |
| Operating Conditions | Temperature: -25°C to 70°C; Humidity: 0% – 97% RH (non-condensing) |
| Optional Add-ons | Display, Indicator Light(s) |
 |

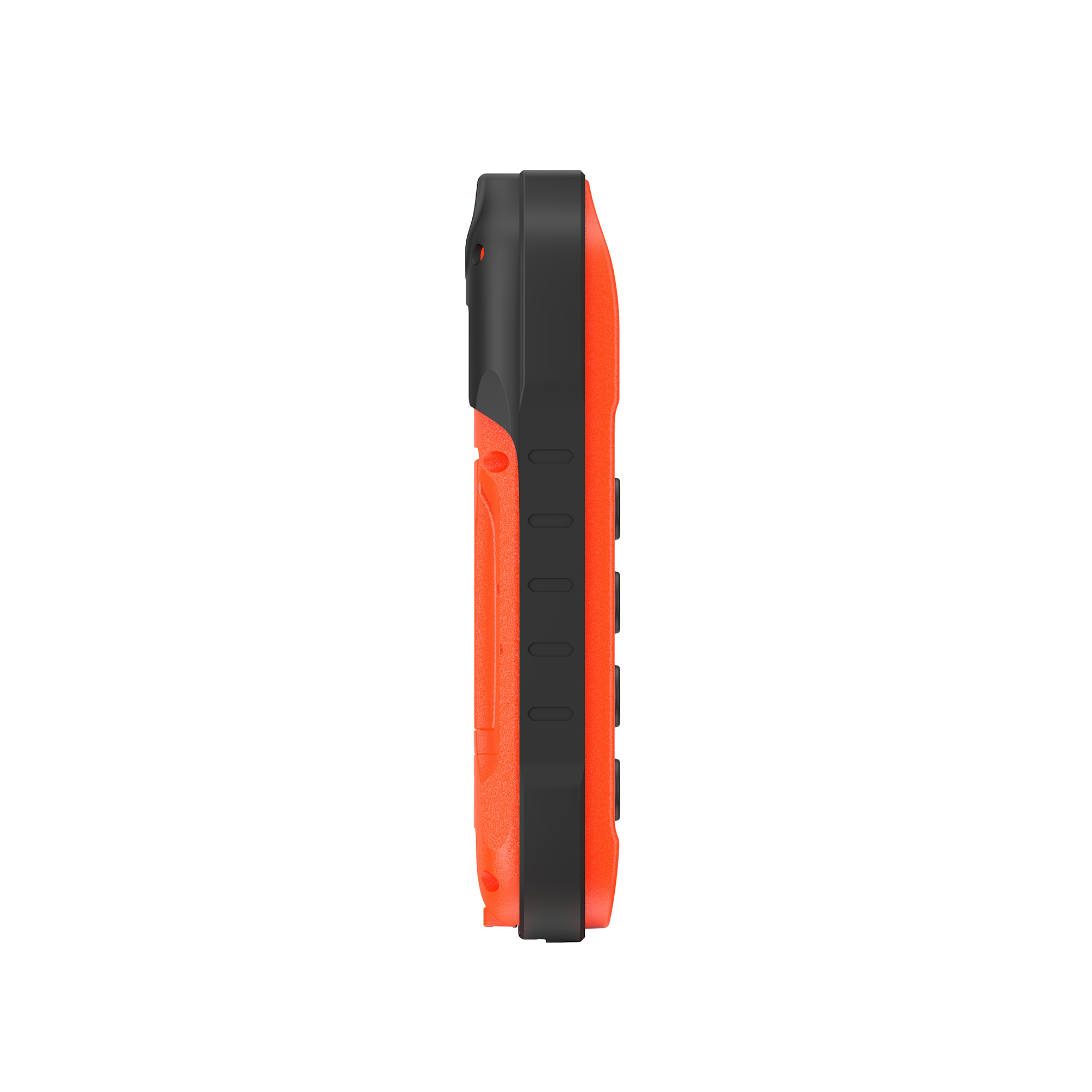

The Techwell BE100 is a compact industrial remote control transmitter designed for simple crane and hoist operations. With 8 self-resetting pushbuttons, it’s ideal for facilities that need reliable, straightforward wireless control without advanced features like joysticks or displays.
Yes. The BE100 is IP66-rated, meaning it’s protected against dust ingress and powerful water jets, making it suitable for outdoor industrial environments, construction sites, and harsh job site conditions.
The BE100 delivers a stable wireless range of ≥150 meters (492 feet), ensuring reliable industrial wireless remote control performance even in large facilities or open outdoor worksites.
The BE100 is powered by two standard AA dry cell batteries (3V). Thanks to its low standby current (5µA) and average operating current (10mA), it offers extended battery life for daily industrial use without frequent replacements.
The BE100 operates reliably between -25°C and 70°C with humidity up to 97% RH (non-condensing), making it suitable for industrial remote control applications in extreme outdoor climates, cold storage, or high-heat industrial settings.
Tell us about your machinery and requirements. Our engineering team will respond within 24 hours with a customized solution and pricing.
