SSJ10

SSJ10

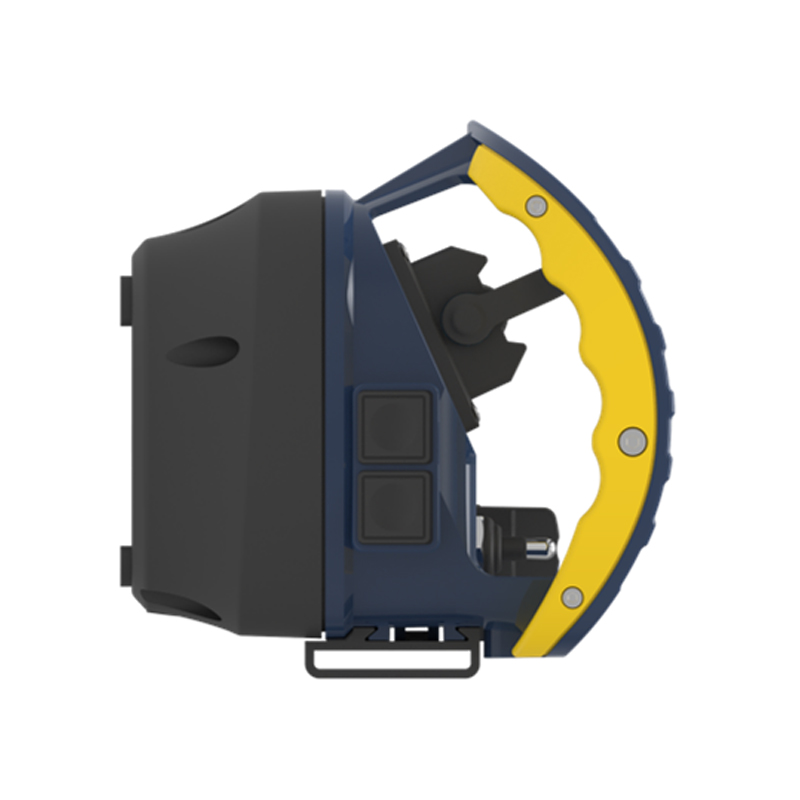

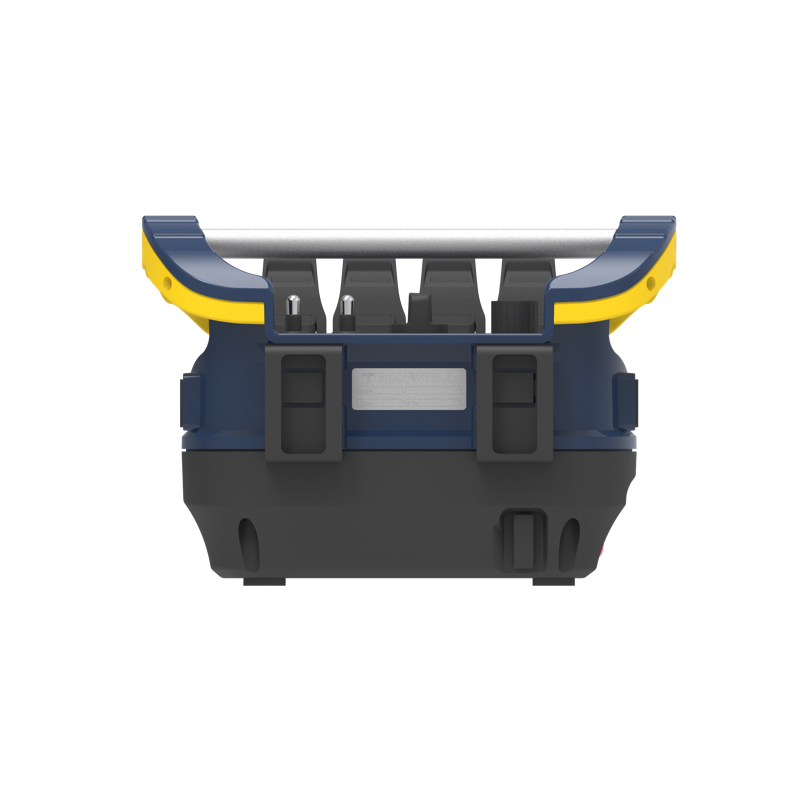

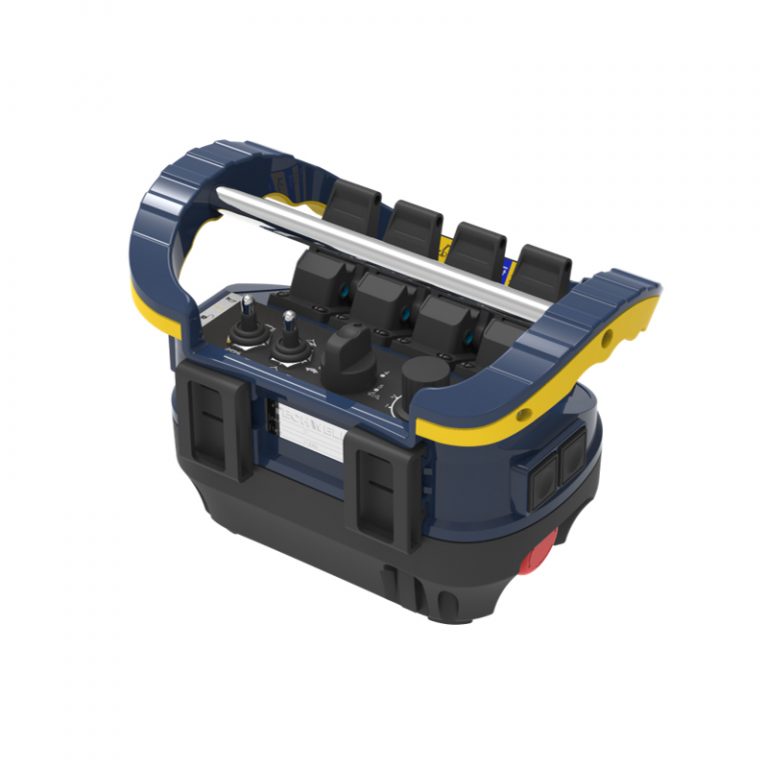

The SSJ10 is the small-but-mighty model of the Super Series: 5 single-axis joysticks, 2 potentiometers and 16 buttons on a body of only 0.83 kg — easy one-hand operation. A built-in NFC module lets you tune parameters from a mobile APP, with no need to open the housing, so re-installation is risk-free. It is water immersion,vibration, drop and salt spray.
ParameterDetails
ModelSSJ10
Dimensions215 × 149.7 × 148.8 mm
Weight (with battery)0.83 kg
AntennaBuilt-in
Control Elements5 joystick channels, 2 potentiometer channels, 2 button channels (16 buttons total), 1 emergency stop
On-board Configuration1 NFC module, supports parameter adjustment via mobile APP
CommunicationWireless + wired
Continuous Runtime18 h
Operating Temperature-25°C to 70°C
Enclosure MaterialABS/PC engineering plastic
Ingress ProtectionIP66
Status Indicator1 fixed LED indicator
OperationCompact design, one-handed operation supported
Safety Features18650 battery cells with built-in temperature protection and pressure relief valve, plus enclosure pre-pressure relief structure for dual safety protection
Product ProfilePurpose-developed for truck-mounted cranes; compact size, one-handed operable, high application specificity

Frequently Asked Questions

Please contact our team for the current lead time for your selected model and configuration. Include your order quantity, customization requirements, delivery destination, and required arrival date so we can assess your project schedule.

Yes. Techwell offers international delivery with shipment tracking. Please provide your delivery destination when requesting a quote so our team can discuss shipping arrangements for your order.



Yes. Techwell offers OEM/ODM services for industrial remote control applications. Depending on the selected model, customization options may include control layouts, frequency configuration, display options, and receiver compatibility. Contact our engineering team to confirm the options available for your equipment.



Please share the product model you are interested in, your equipment type, required control functions, order quantity, and destination country. If you need a customized configuration, include your technical requirements so our team can assess the application and prepare a suitable proposal.

Techwell provides technical support, user manuals, and programming software for its remote control systems. Contact our team for the documentation and assistance relevant to your selected model and configuration.
