STD12

STD12

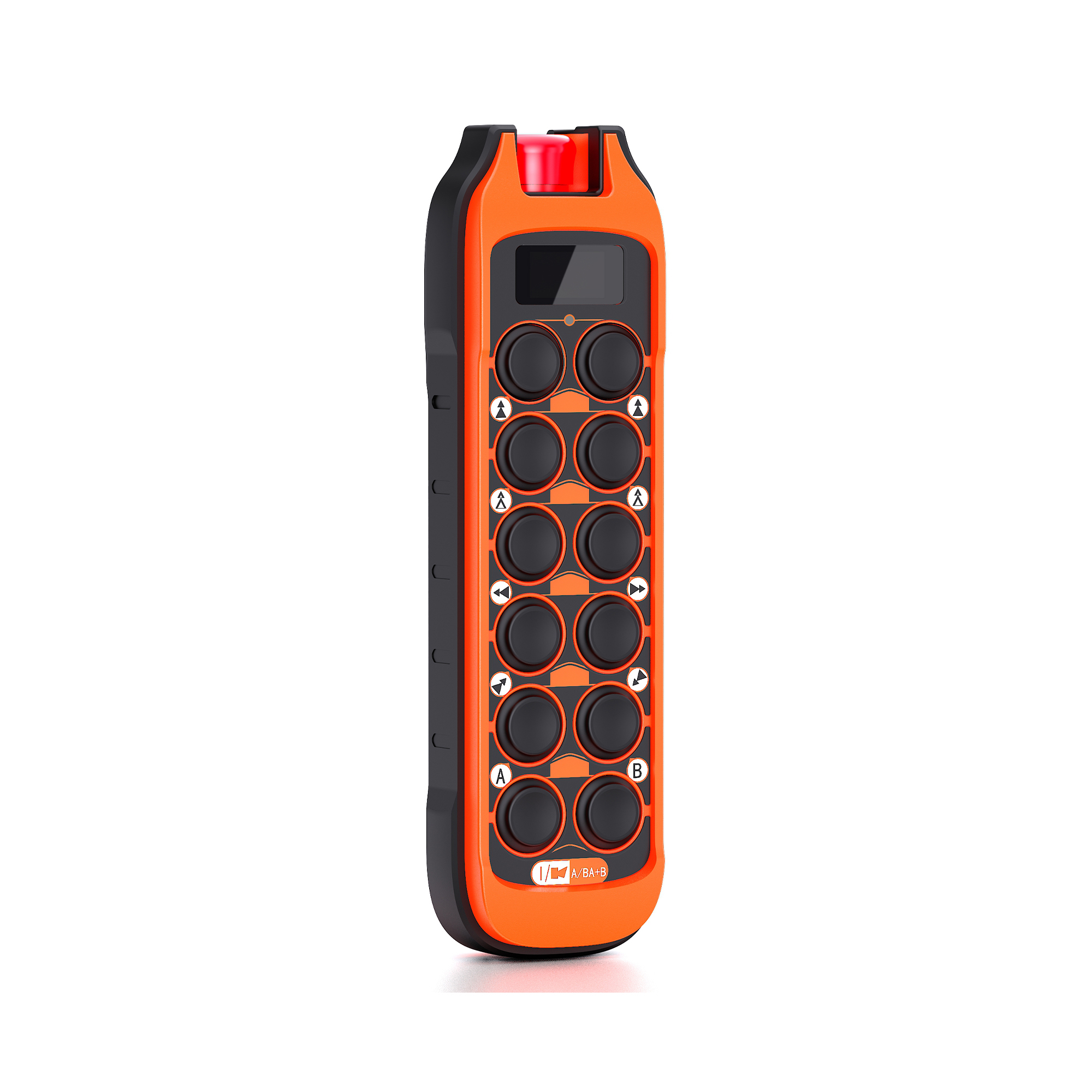

The STD12 is the flagship of the Super Series: 12 two-stage dual-speed buttons, a large display and the A / BA+B selector — the most motions and the finest control in one handset. Press lightly to creep into position, press fully to work at full speed. CE certification is standard and SIL 2 / PL d safety is optional, for jobs that compromise on neither safety nor precision.Key Features
  • 12 two-stage buttons — flagship control density
  • CE certified with optional SIL 2 / PL d — top-level safety
  • Large status display and A / BA+B hoist selector
  • 150 m+ range, IP66, -25 ℃ to +70 ℃ wide temperature
  • Two AA batteries or lithium power, 5 µA standby
可配置项 / Options & Configurations
  • SIL 2 / PL d functional-safety version (function code 800)
  • Speed thresholds, button logic and interlocks set for your machine
  • Display and panel labels in your language
  • AA or rechargeable lithium power
 Certifications
  • CE certified
  • Optional: SIL 2 / PL d functional safety
Industrial Remote Control EnclosureSTD12
Dimensions256 × 75 × 50 mm
Weight (excl. battery)0.38 kg
No. of Buttons10
MaterialEngineering Plastic
Ingress ProtectionIP66
Button TypeDual-speed
Power Supply2 × AA batteries (3V) / Rechargeable Li-ion battery (4.2V)
Wireless Range≥ 150 m
Current ConsumptionStandby: 5 μA; Average: 10 mA
Transmit Power10 mW
Frequency Range429 MHz – 459 MHz
AntennaInternal
Operating ConditionsTemperature: -25°C to 70°C; Humidity: 0% – 97% RH (non-condensing)
Optional Add-onsDisplay, Indicator Light(s)
SPE100 remote control Engineering View of External Dimensions



Frequently Asked Questions

Please contact our team for the current lead time for your selected model and configuration. Include your order quantity, customization requirements, delivery destination, and required arrival date so we can assess your project schedule.

Yes. Techwell offers international delivery with shipment tracking. Please provide your delivery destination when requesting a quote so our team can discuss shipping arrangements for your order.



Yes. Techwell offers OEM/ODM services for industrial remote control applications. Depending on the selected model, customization options may include control layouts, frequency configuration, display options, and receiver compatibility. Contact our engineering team to confirm the options available for your equipment.



Please share the product model you are interested in, your equipment type, required control functions, order quantity, and destination country. If you need a customized configuration, include your technical requirements so our team can assess the application and prepare a suitable proposal.

Techwell provides technical support, user manuals, and programming software for its remote control systems. Contact our team for the documentation and assistance relevant to your selected model and configuration.
