FSJ10

FSJ10

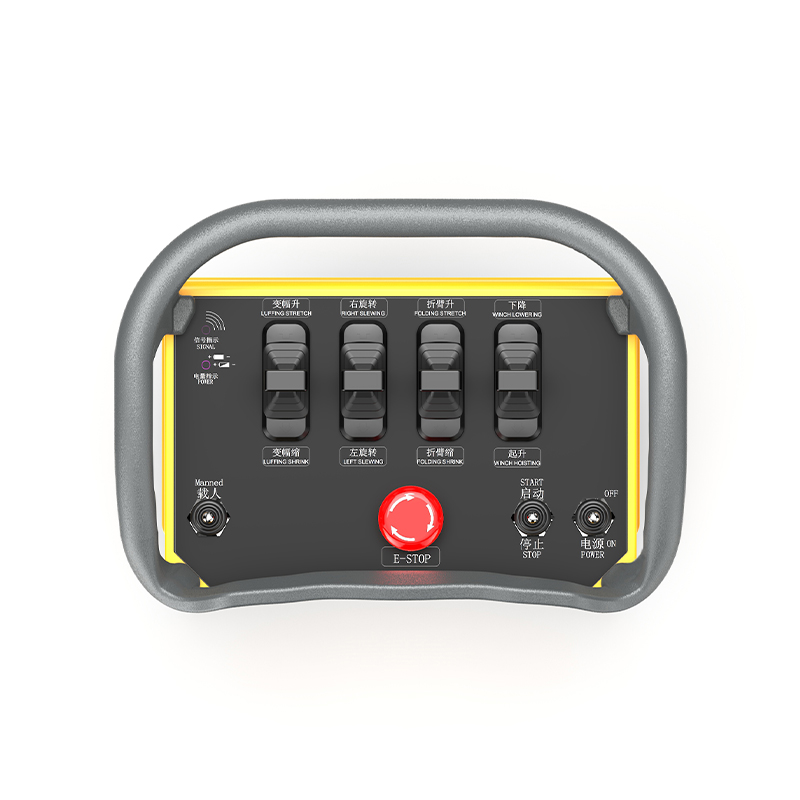

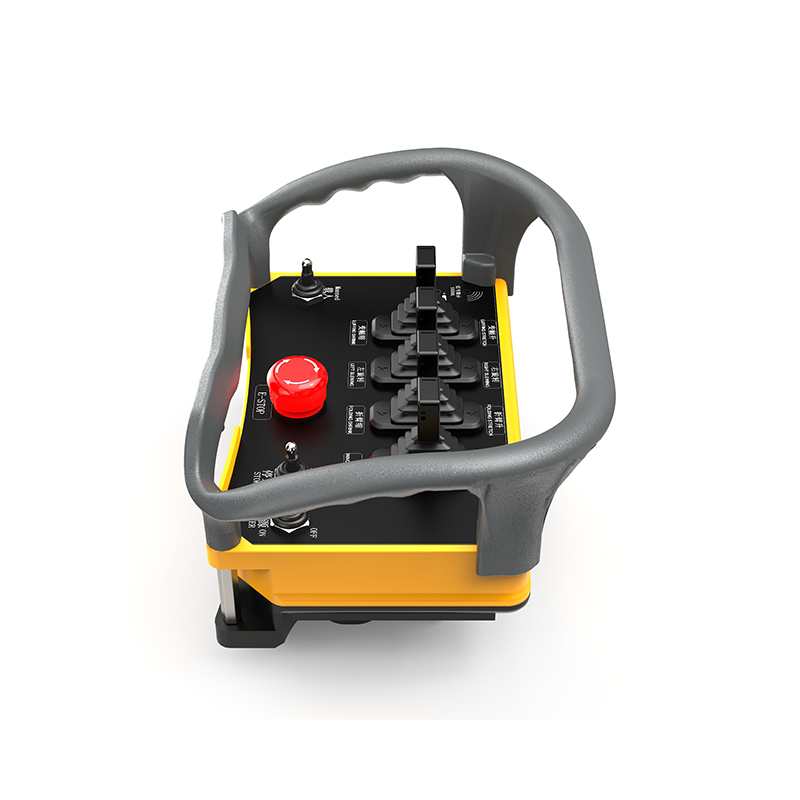

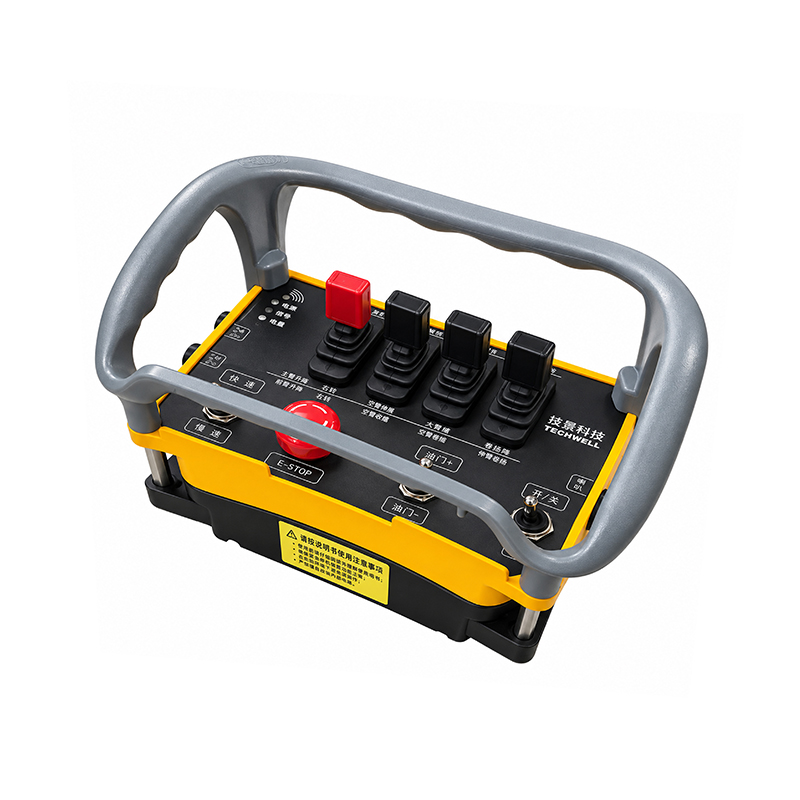

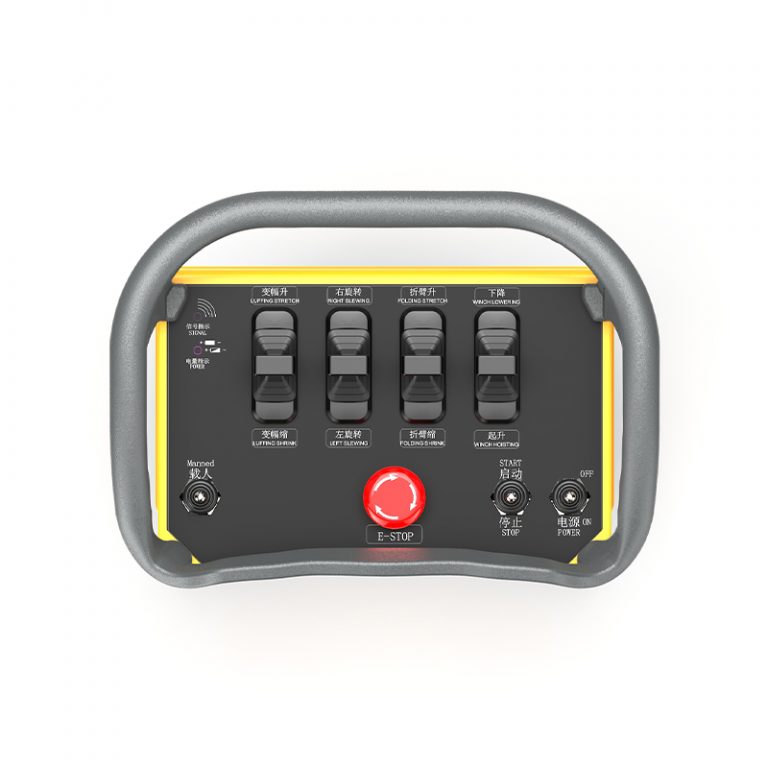

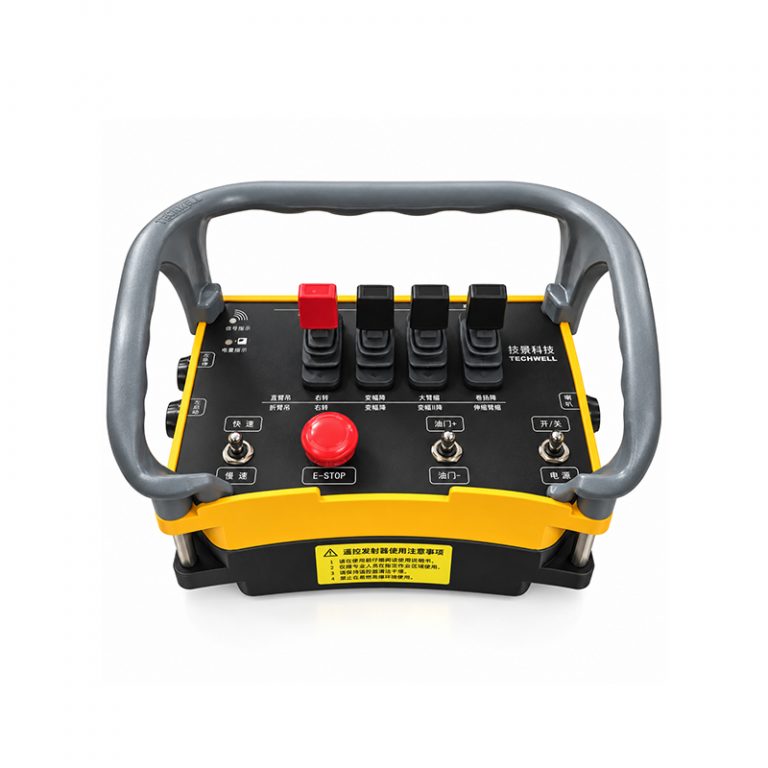

The FSJ10 puts single-axis proportional joysticks on the proven Founder shoulder platform. Push a little, move slowly; push more, move faster — speed follows the lever stroke. One joystick for each motion: hoist, luff and slew each get their own lever, with a smooth linear feel. It is the step up from on/off control to true proportional control.
Key Features
  • Single-axis proportional joysticks — speed follows the lever stroke
  • One lever per motion — clear logic, fewer mistakes
  • Joysticks plus on/off keys — proportional and digital control together
  • Shoulder-carried — move freely around the job site
Options & Configurations
  • Joystick count and layout set for your machine
  • Lever stroke, dead band and output curves preset at factory
  • Extra toggle switches, potentiometers and selectors
ModelFSJ10
Dimensions264 × 190 × 151 mm
Weight (including battery)1.4 kg
Operating Frequency433 / 470 MHz
Transmit Power< 10 mW
Communication Range100 m
Power SupplyLi-ion Battery: 7.4V / 3000mAhNi-MH Battery: 8.4V / 2000mAh
AntennaInternal
Control MethodEmergency stop mushroom switch + joystick handles + toggle switches + push buttons + (rotary switch)
Status DisplayStatus LED*LCD display optional
Component DurabilityLong-life joystick handles rated for 10 million operations
Operating Temperature-25°C to 70°C
Housing MaterialEngineering Plastic
Protection ClassIP65
External Interface*Wired communication connection optional
AccessoriesShoulder strap, waist belt, charger, antenna (for external configuration), battery

Frequently Asked Questions

Please contact our team for the current lead time for your selected model and configuration. Include your order quantity, customization requirements, delivery destination, and required arrival date so we can assess your project schedule.

Yes. Techwell offers international delivery with shipment tracking. Please provide your delivery destination when requesting a quote so our team can discuss shipping arrangements for your order.



Yes. Techwell offers OEM/ODM services for industrial remote control applications. Depending on the selected model, customization options may include control layouts, frequency configuration, display options, and receiver compatibility. Contact our engineering team to confirm the options available for your equipment.



Please share the product model you are interested in, your equipment type, required control functions, order quantity, and destination country. If you need a customized configuration, include your technical requirements so our team can assess the application and prepare a suitable proposal.

Techwell provides technical support, user manuals, and programming software for its remote control systems. Contact our team for the documentation and assistance relevant to your selected model and configuration.
