Joystick Remote Control MP400

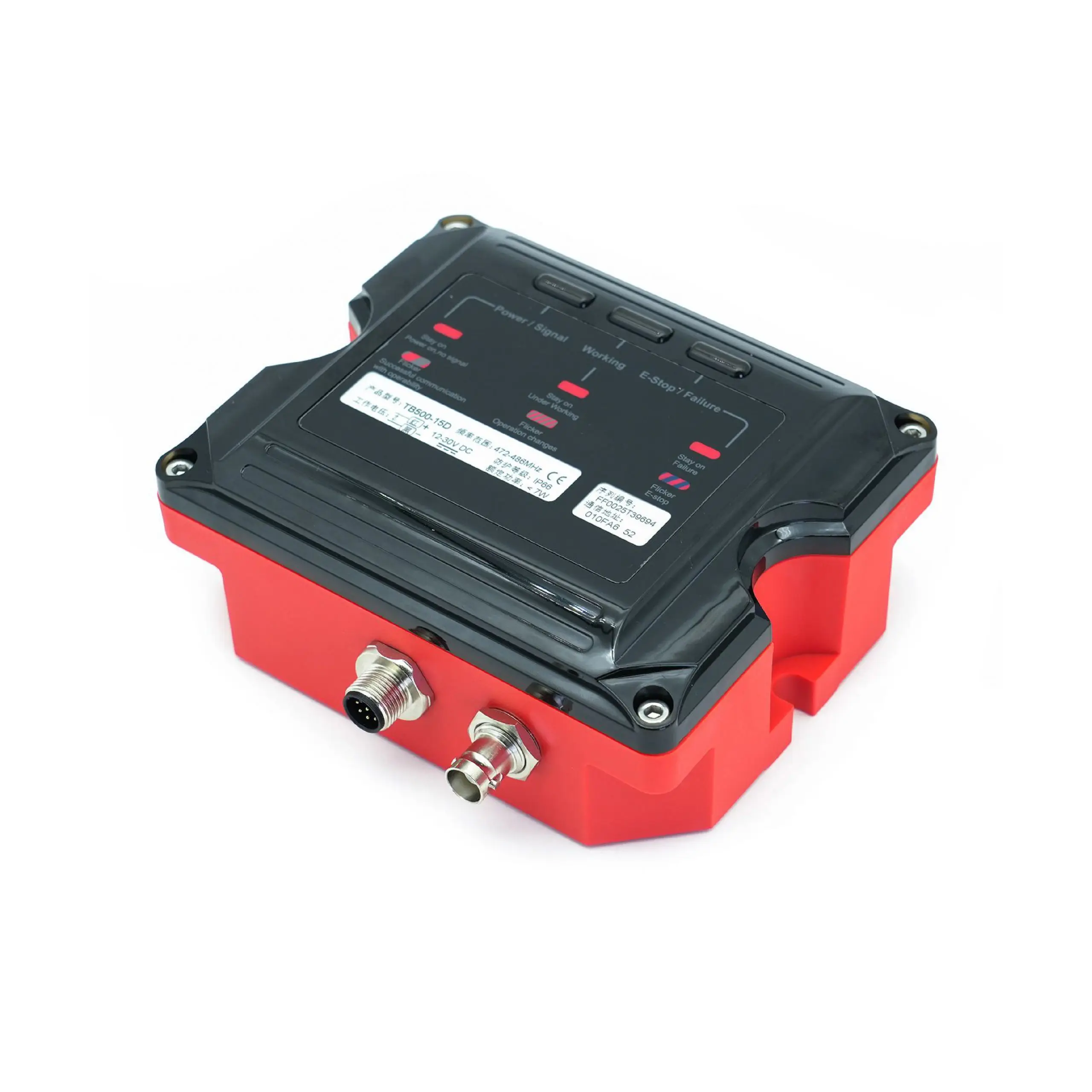

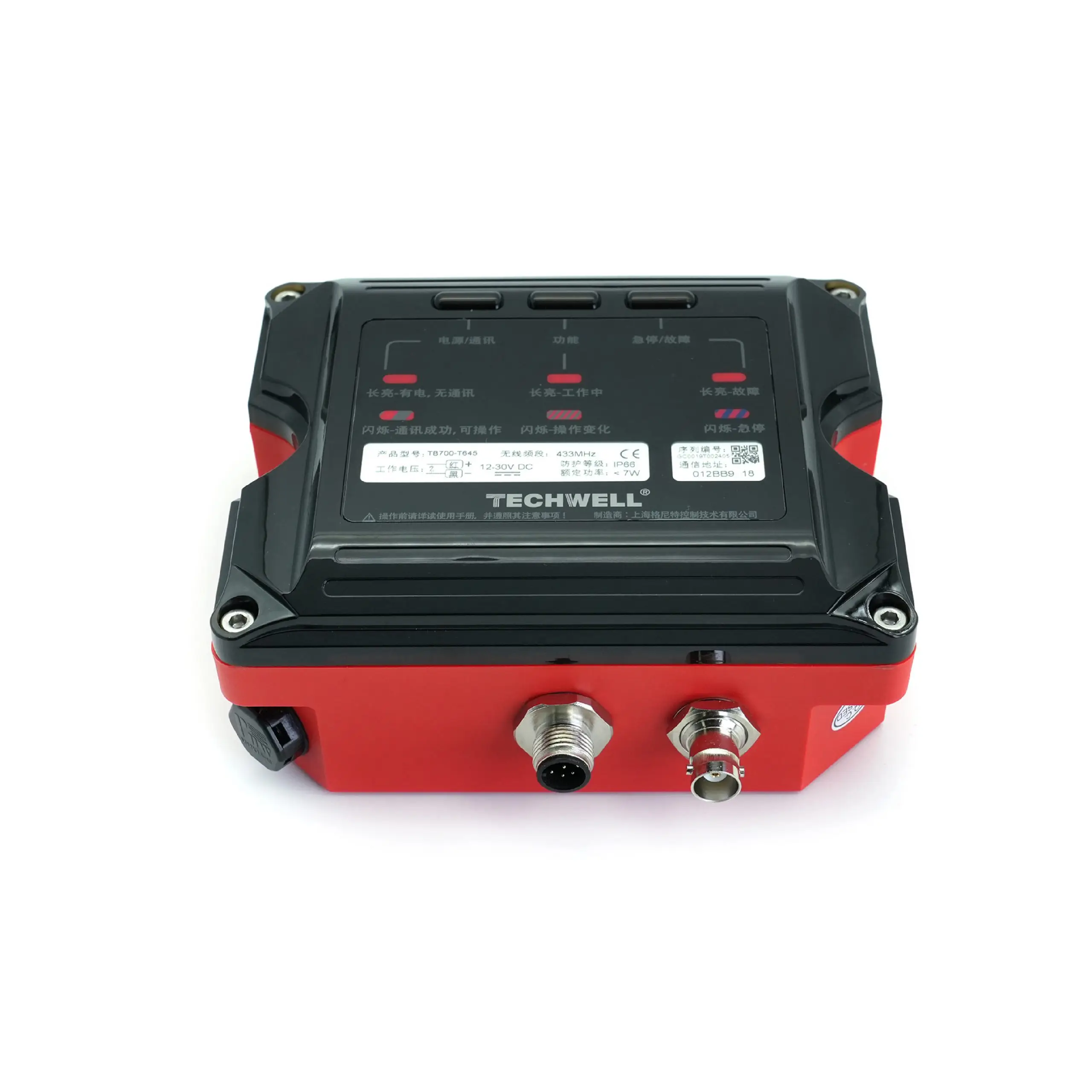

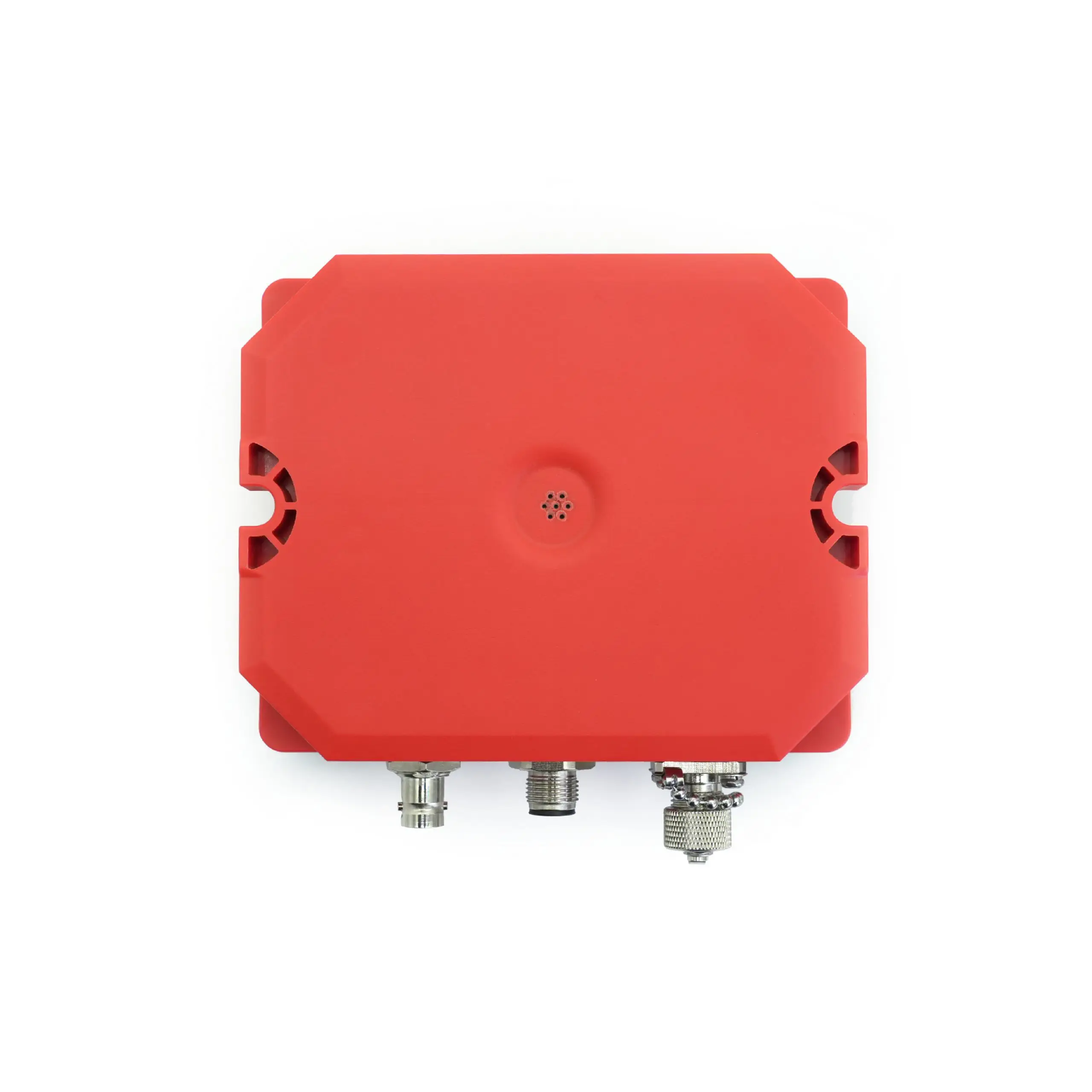

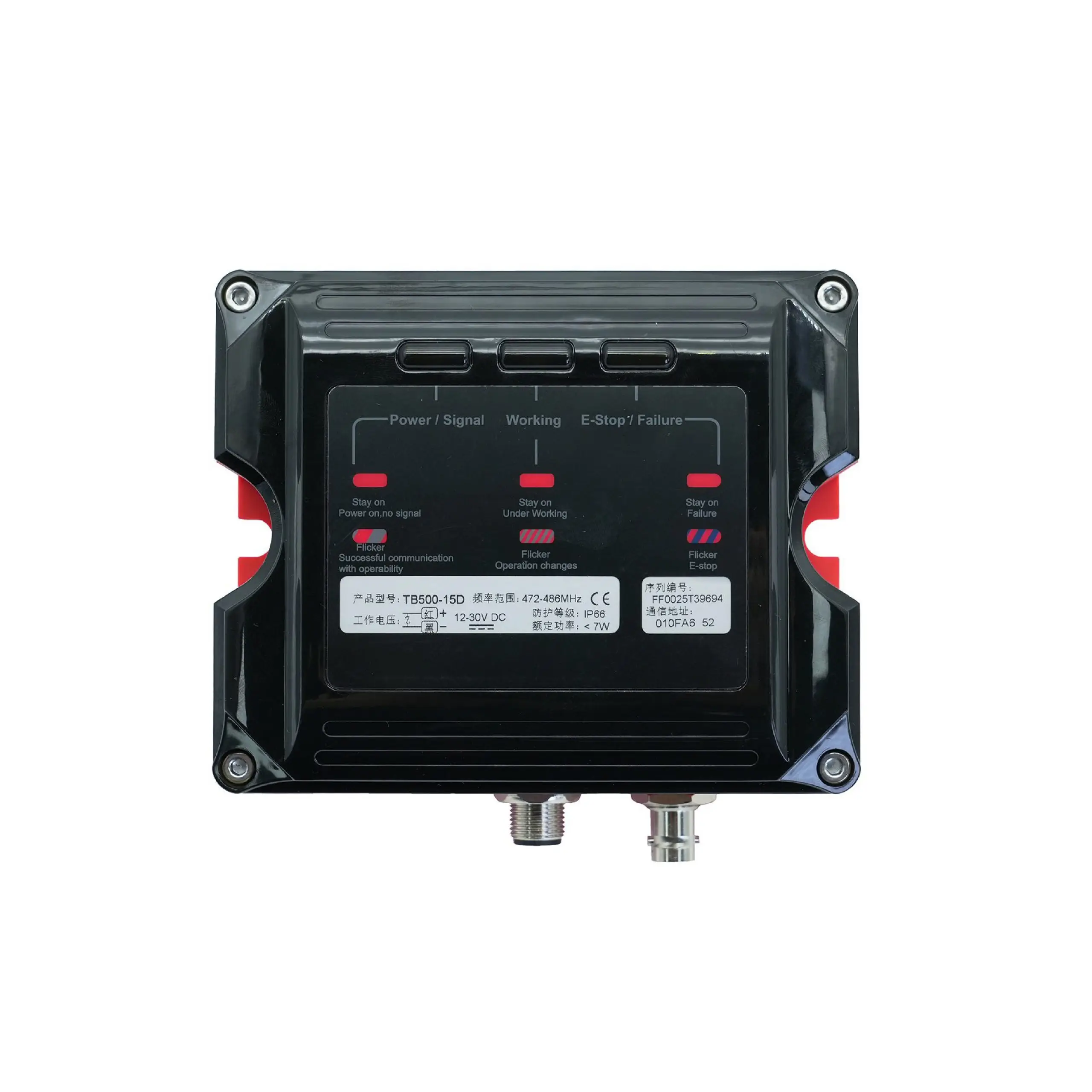

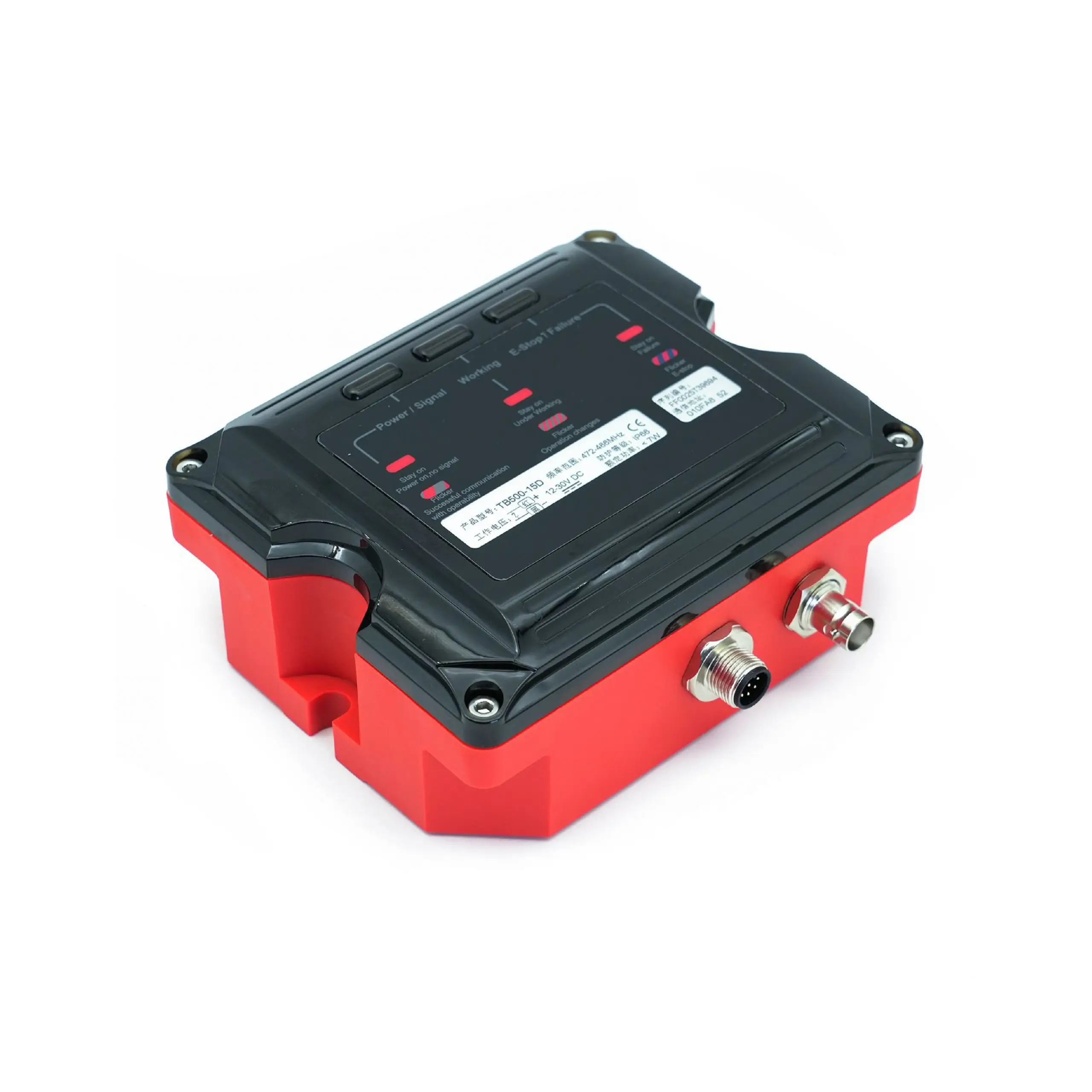

MP200 h receiver，Used to receive signals from industrial wireless transmitters
MP200 h receiver，Used to receive signals from industrial wireless transmitters

MP400

  • Ultra-compact form factor — smallest in the M-Series lineup
  • CANopen bus output, 400 pure bus-type
  • 134×131×60mm, 0.45kg
  • IP65 rated, -25°C to 70°C operating range
  • 12–30VDC power supply, external antenna
  • EN ISO 13849-1:2015 PL d safety standard
Get a Quote

Description

SeriesM-Series Receiver
ModelMPN Series
Size134×131×60 mm
Weight0.45kg
MaterialEngineering Plastics
Protection ClassIP65
Power Supply12-30VDC
Operating Current100mA
Rated Power＜10W
Electric Shock Capacity8A/250VAC
Antenna TypeExternal
Operating Temperature Range-25℃-70℃
Output MethodCANOPEN
Output InterfaceM12
Optional FeaturesFeedback Detection, Audible and Visual Alarms, Data Card
Safety StandardsEN ISO 13849-1:2015 PL d
Dimensional DrawingM-Series Receiver Dimensions Engineering View of External Dimensions
