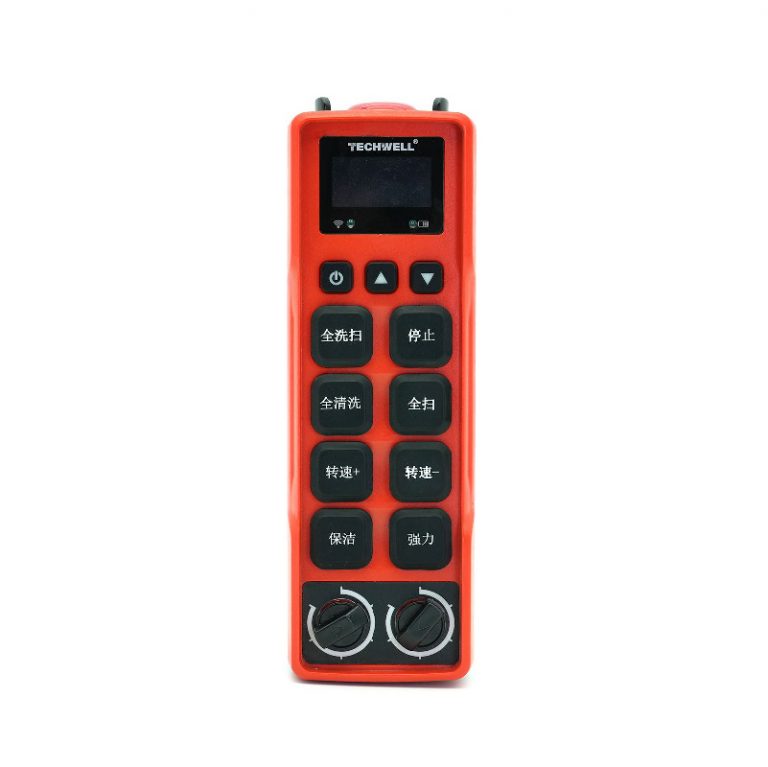

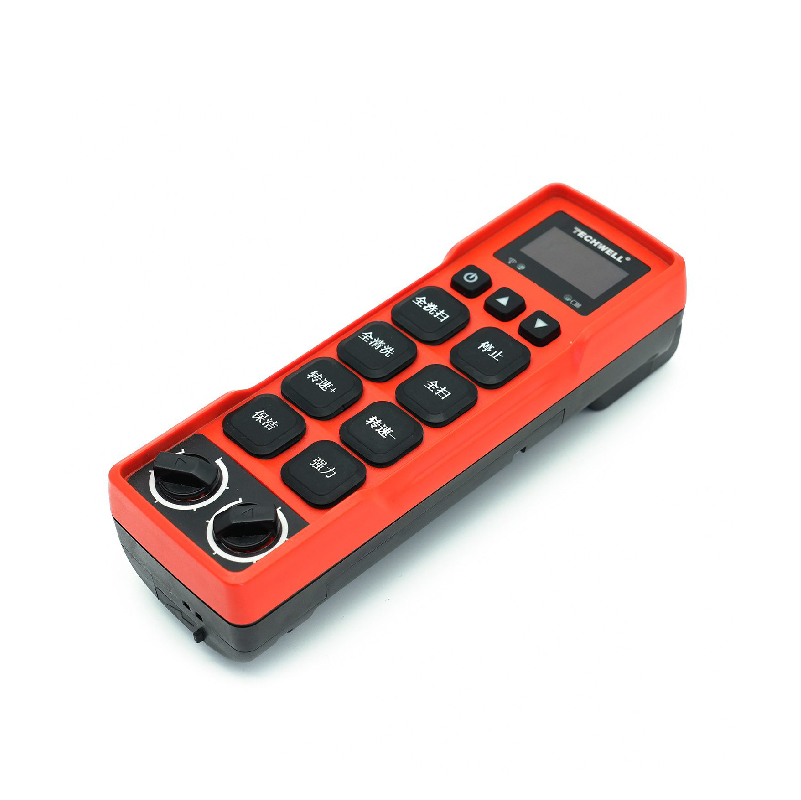

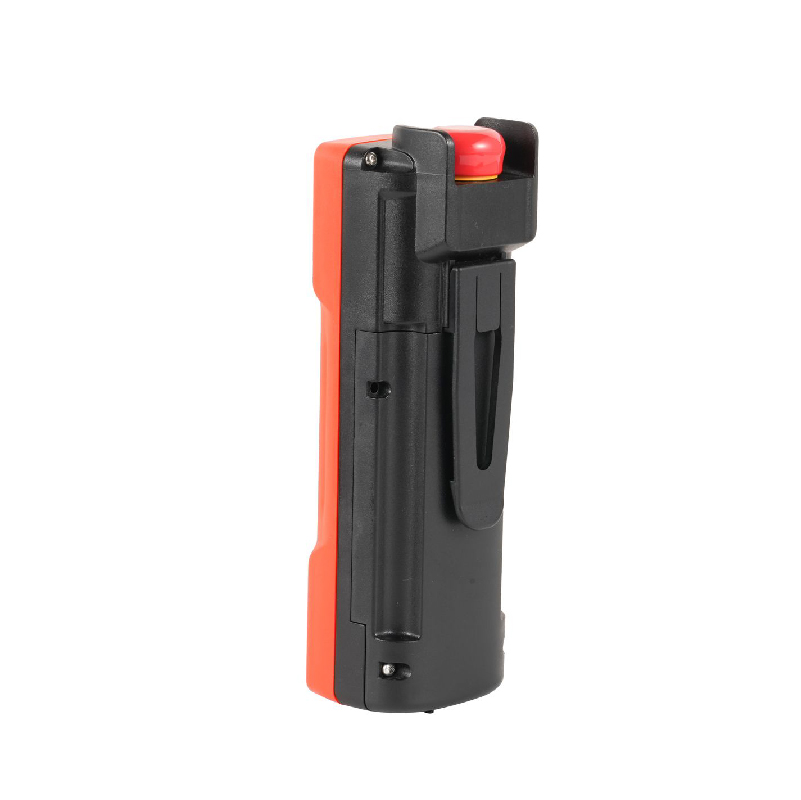

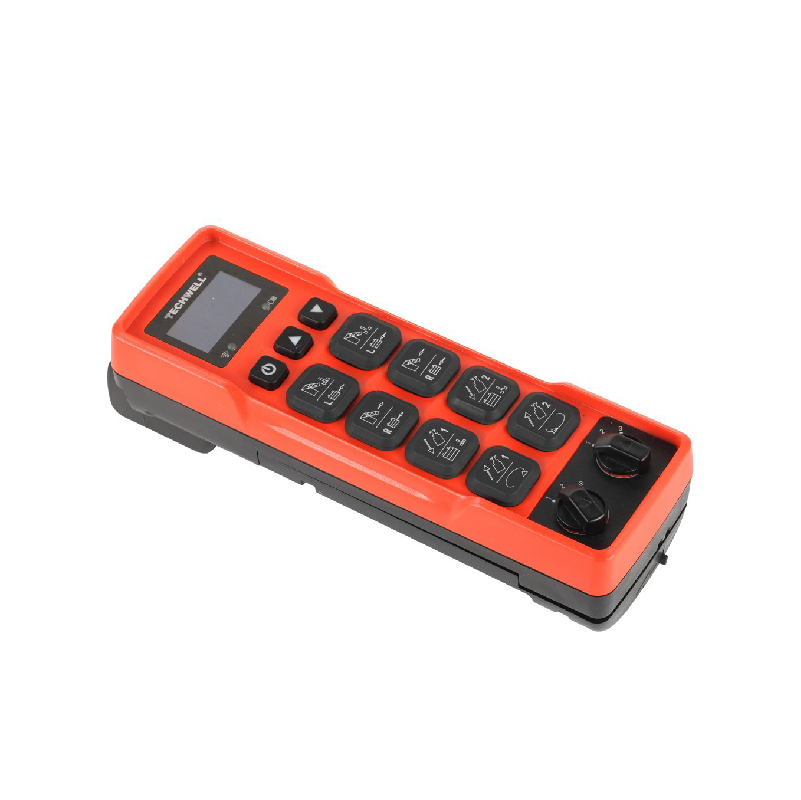

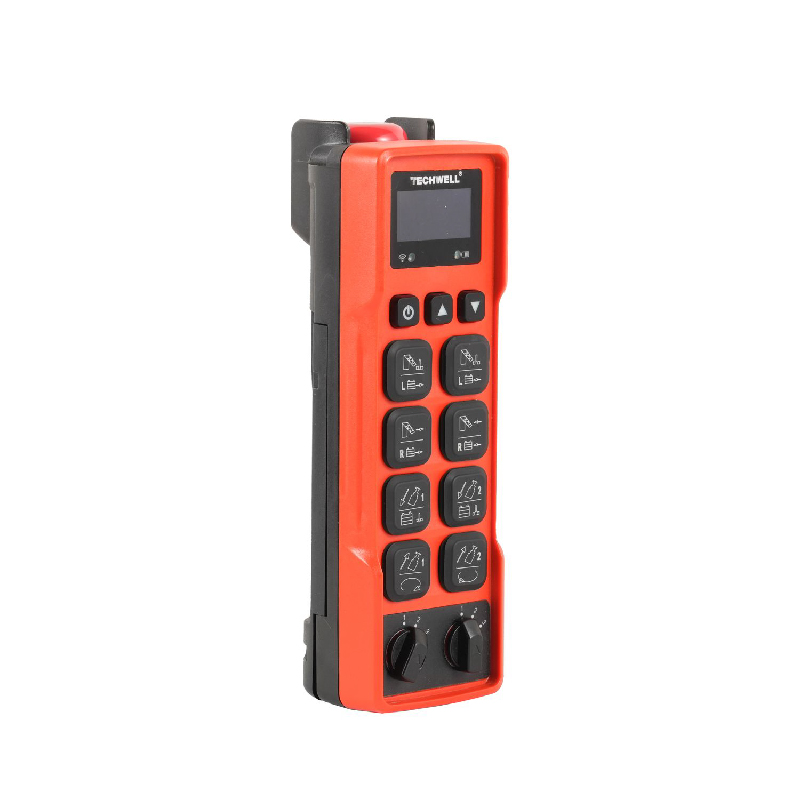

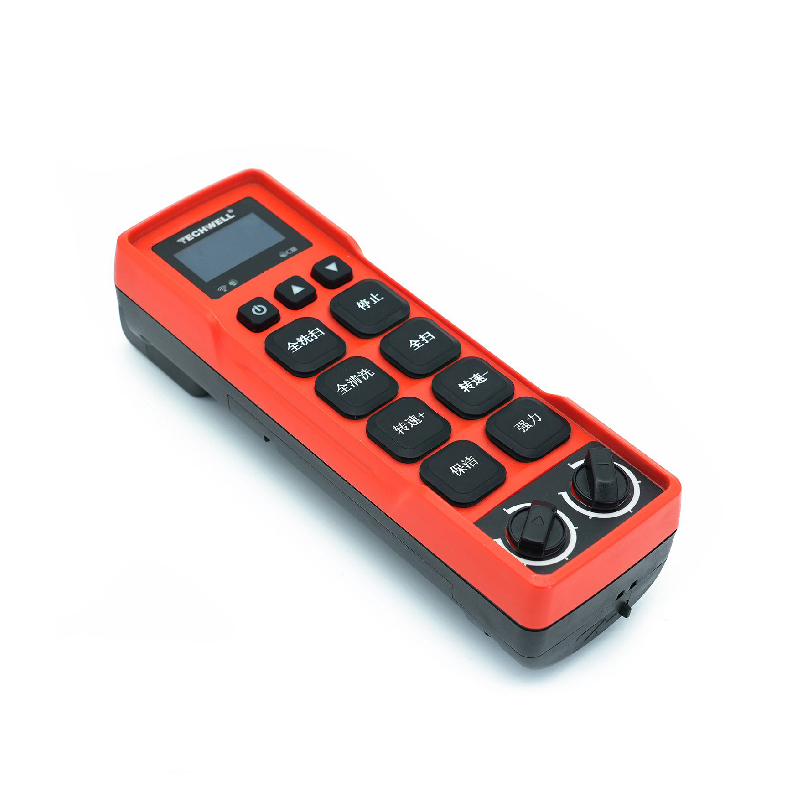

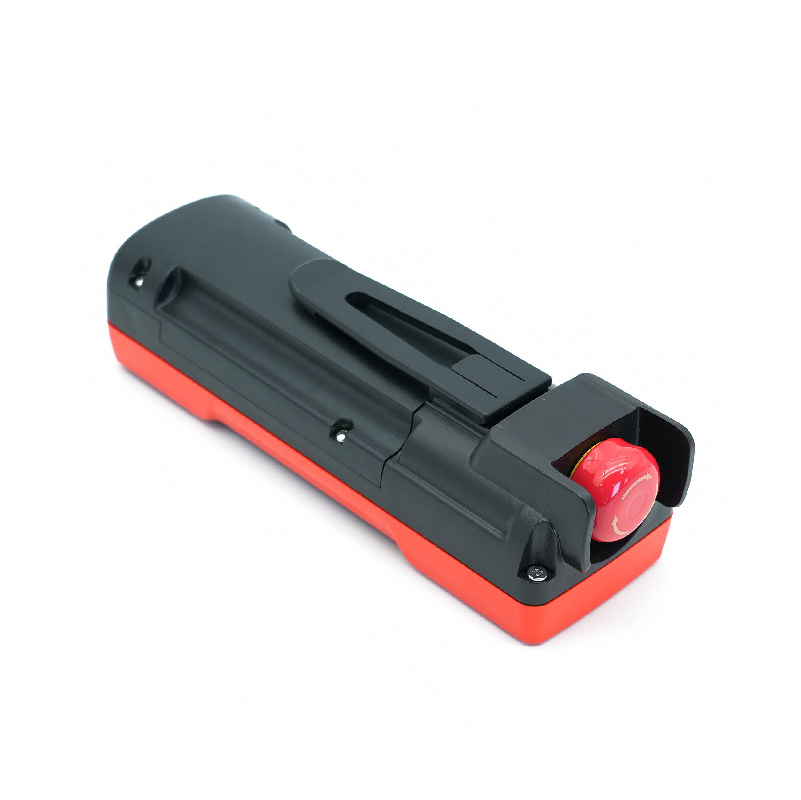

Rechargeable battery (6V/2000mAh). Compact design with optional potentiometer or display.
| Series | Handheld B Series |
| Model | BEB |
| Size | 212×68×61 mm |
| Weight (excluding battery) | 0.36kg |
| Number of Keys | eight |
| Material | Engineering Plastics |
| Protection Class | IP66 |
| Keypad Layout | Self-Resetting + Selector Switch |
| Power Supply | 6VDC/2000mA |
| Wireless Range | ≥150m |
| Operating Current | 30mA |
| Transmit Power | ≤10mW |
| Frequency Range | 433 MHz Band: 427.000 –436.300 MHz 470 MHz Band: 472.350 –485.775 MHz |
| Antenna Type | built-in |
| Operating Temperature Range | Temperature: -25 °C to 70 °C Humidity: 0% to 97% RH (non-condensing) |
| Optional Features | Selector Switch, Potentiometer, Display Screen |
| Transmitter Operation Modes | Combinations of Pushbutton and Rotary Switches |
| Dimensional Drawing |  |
