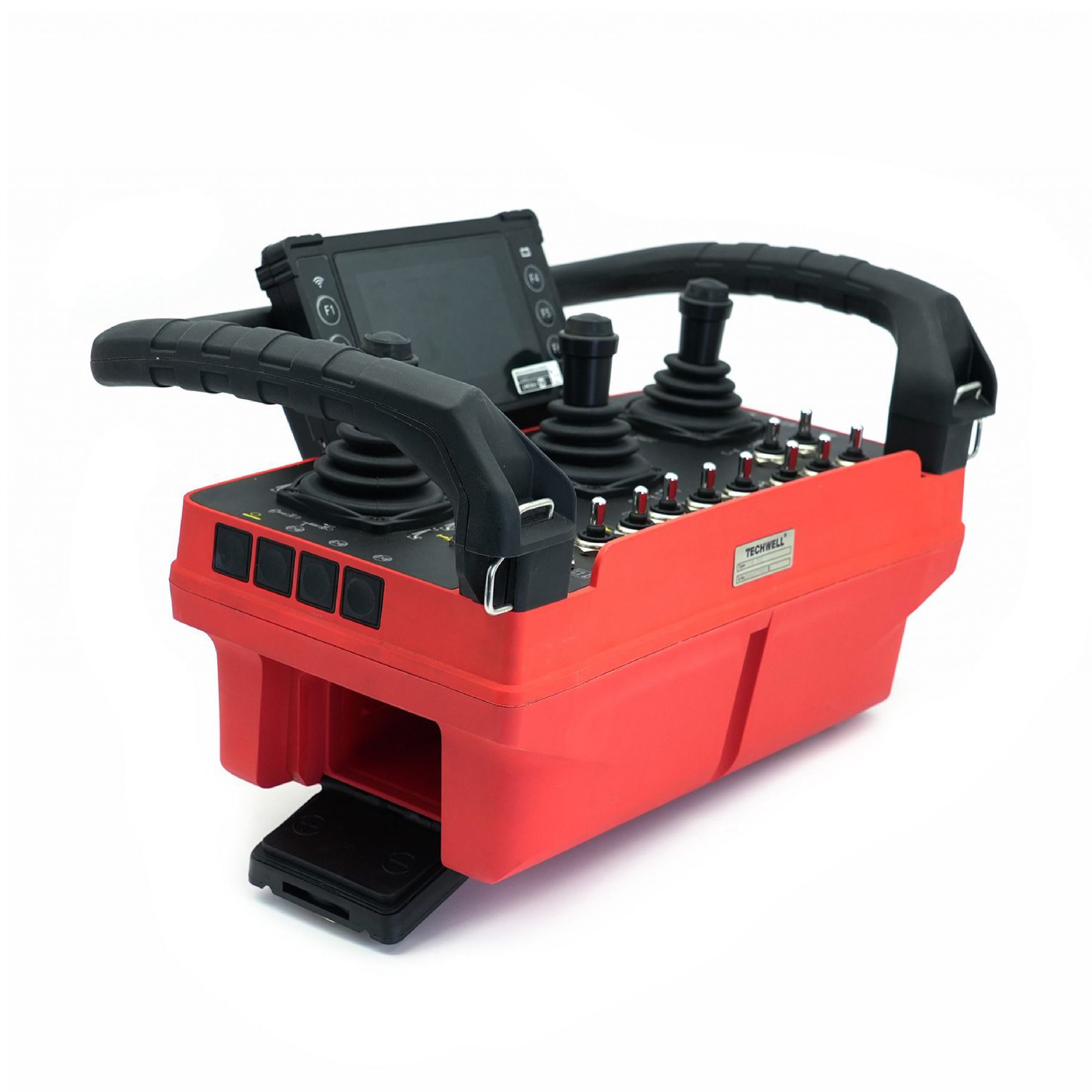

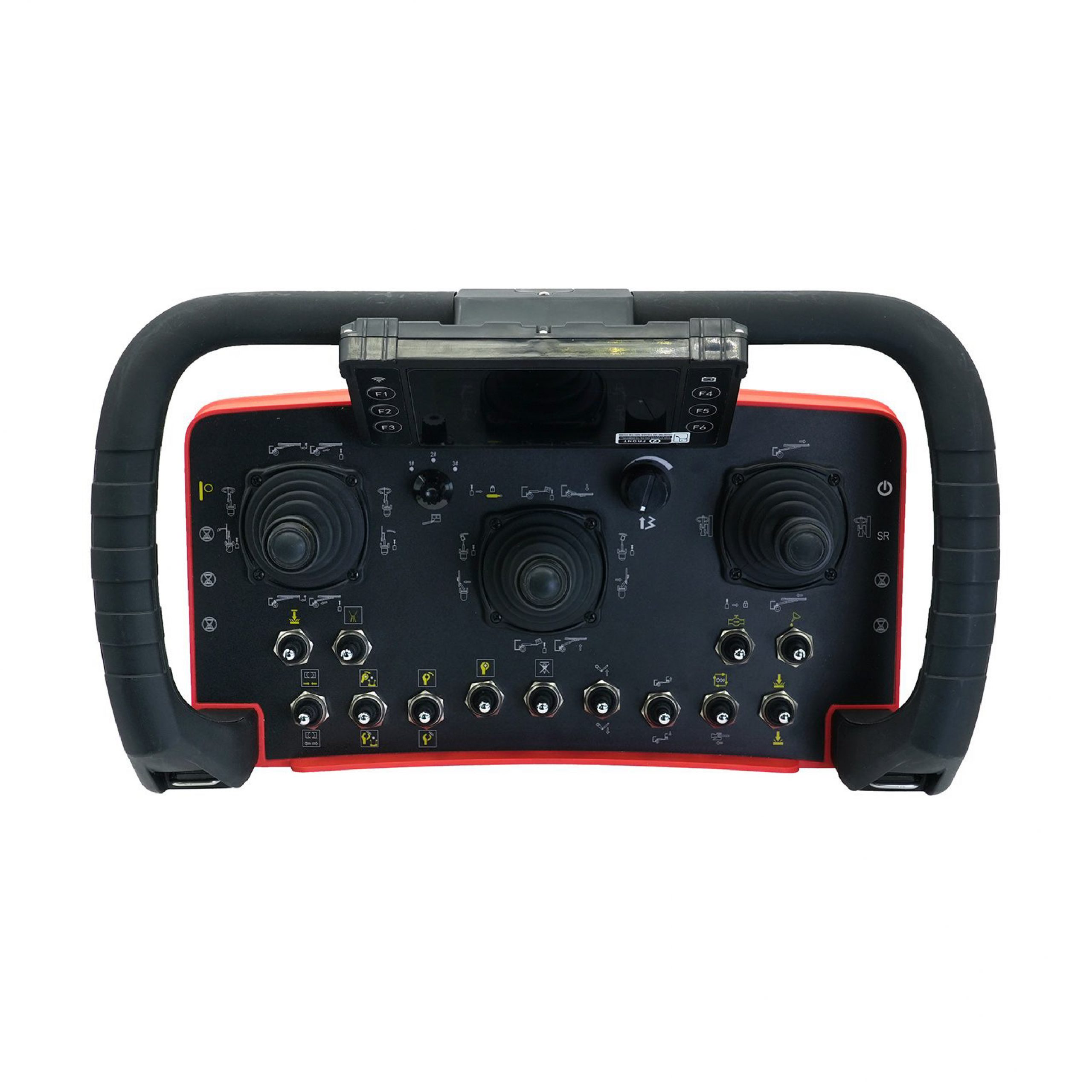

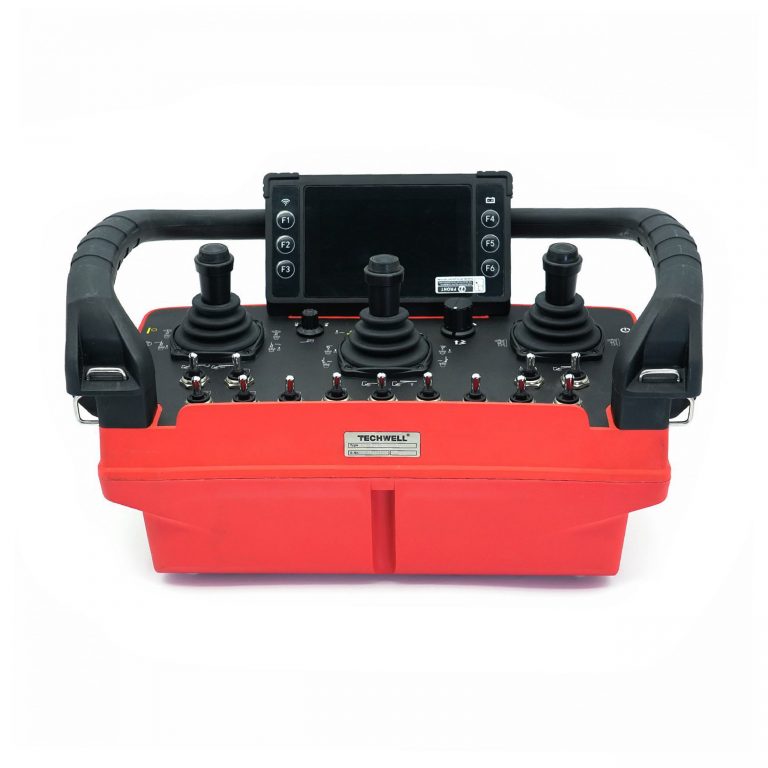

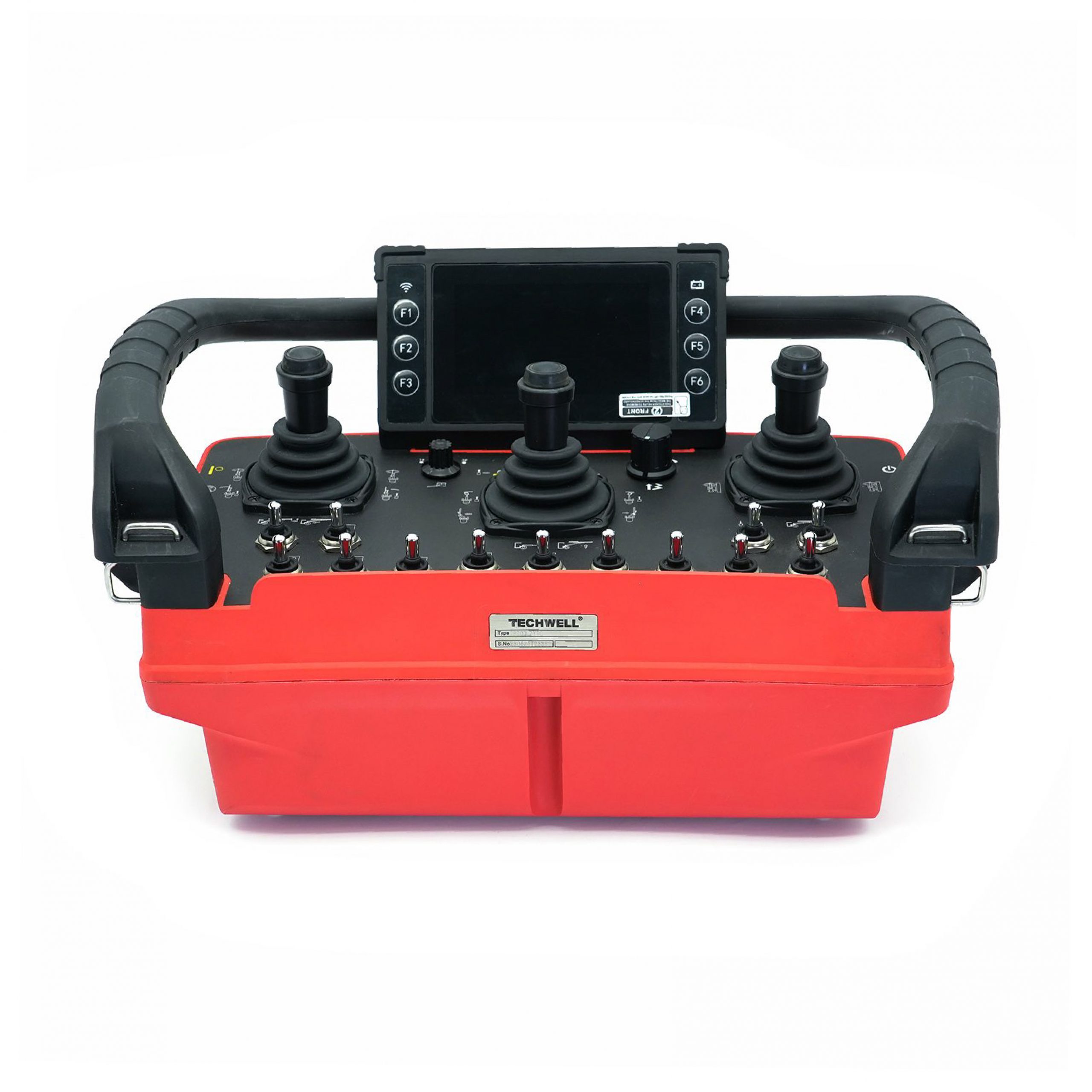

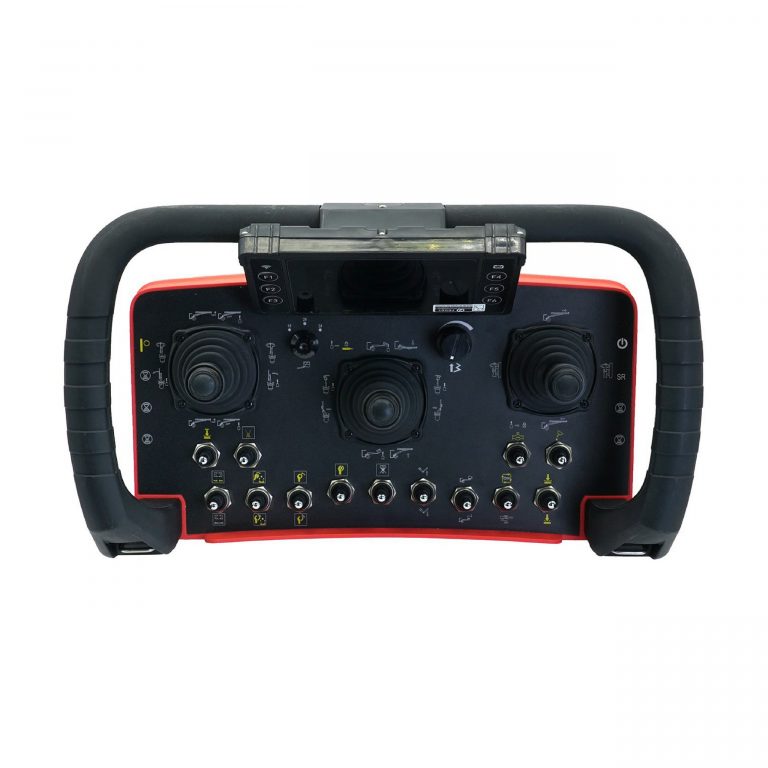

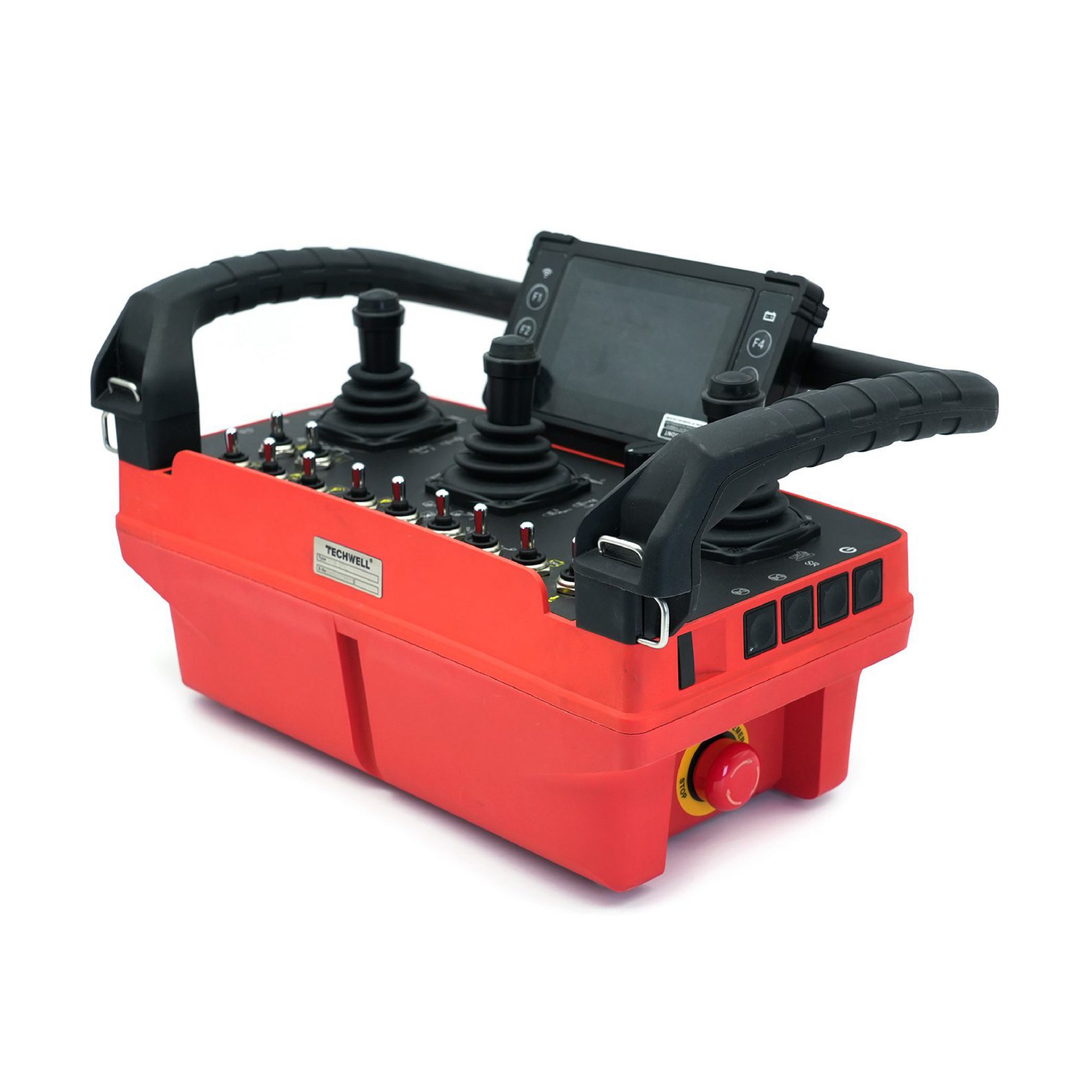

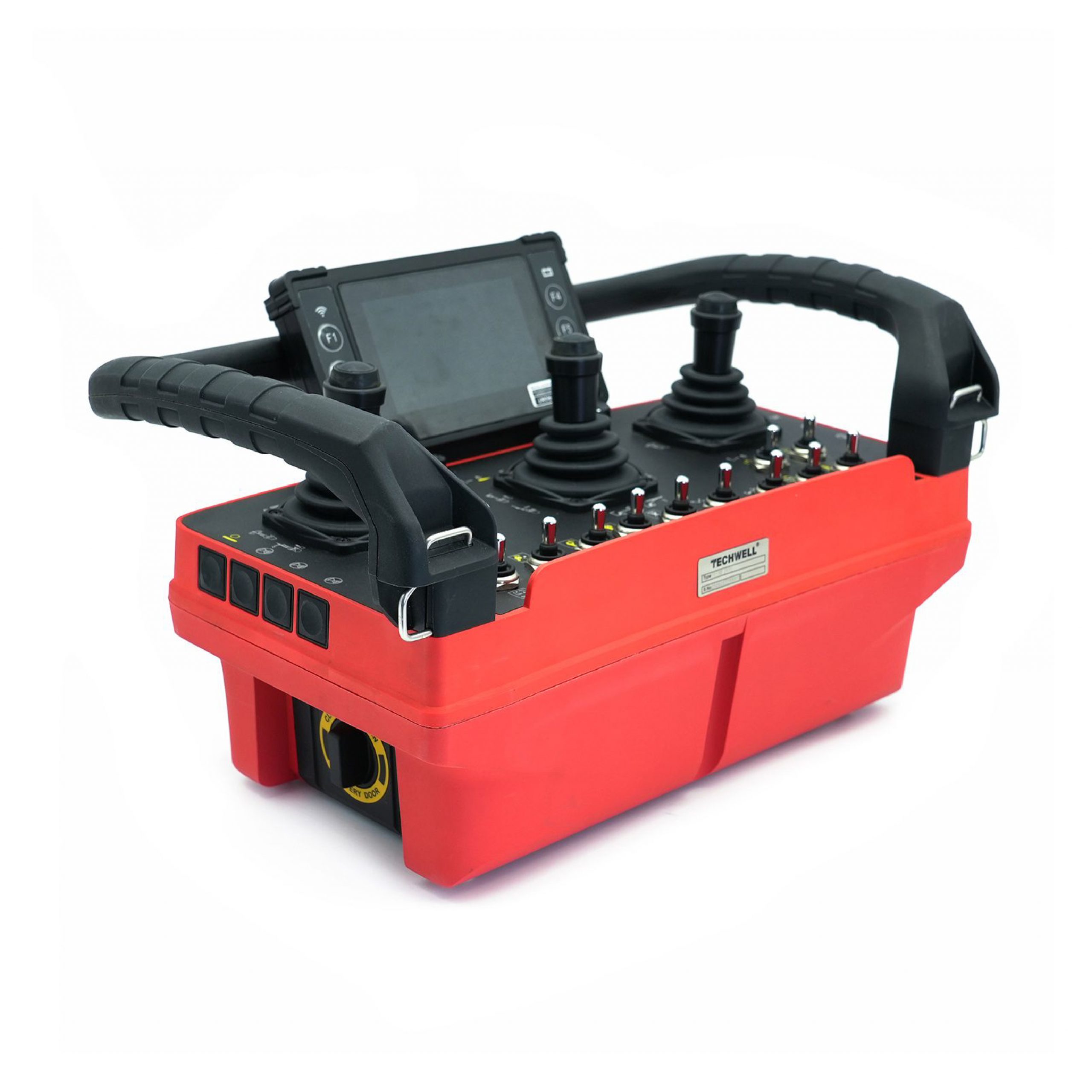

3.2kg, 396×234×216mm. Optional 4.3″/7″ display. For large cranes and mining equipment.
| Series | Shoulder and Back Type B Series |
| Model | BL |
| Size | 396×234 x216 mm |
| Weight (excluding battery) | 3.2kg |
| Material | Engineering Plastics |
| Protection Class | IP66 |
| Power Supply | |
| Wireless Range | ≥150m |
| Operating Current | 150mA |
| Transmit Power | ≤10mW |
| Frequency Range | 433 MHz Band: 427.000–436.300 MHz 470 MHz Band: 472.350–485.775 MHz |
| Antenna Type | built-in |
| Operating Temperature Range | Temperature: -25°C to 70°C Humidity: 0% to 97% RH (non-condensing) |
| Optional Features | Identification Card, 3-Axis Sensor, Video Feedback |
| Transmitter Operation Modes | Combinations of Joysticks, Toggle Switches, Pushbutton Switches, and Rotary Switches |
| Display | 3″、4.3″、7″ |
| Dimensional Drawing |  |
Tell us about your machinery and requirements. Our engineering team will respond within 24 hours with a customized solution and pricing.
