Comes with built-in lighting and a buzzer; activates with any button; customizable features include single/double hooks and single/double speeds

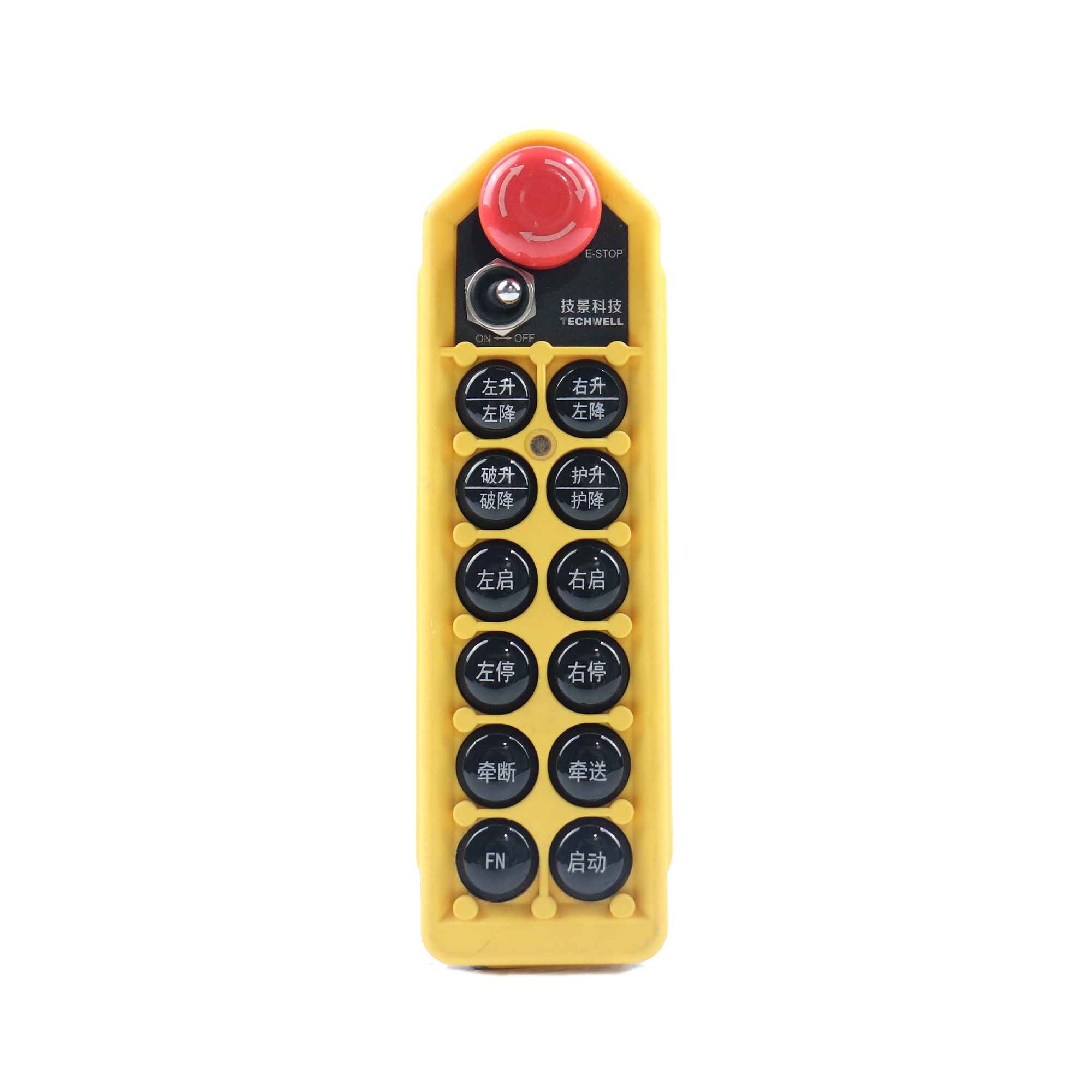

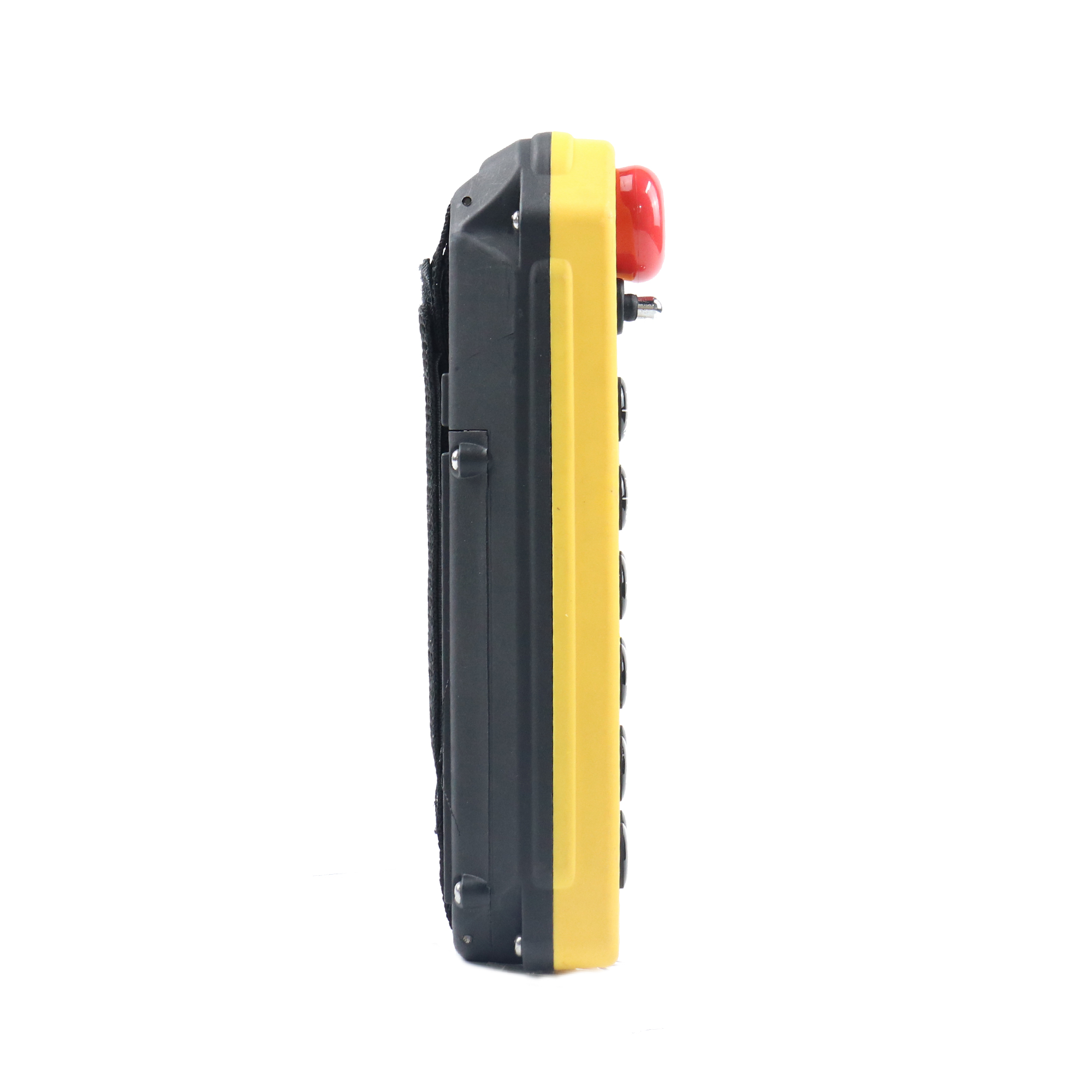

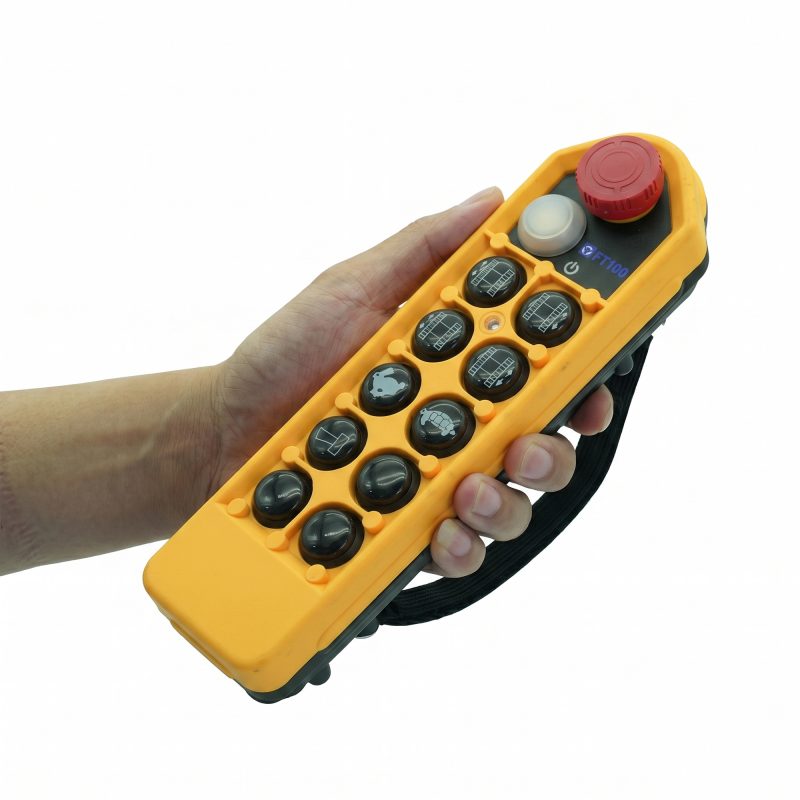

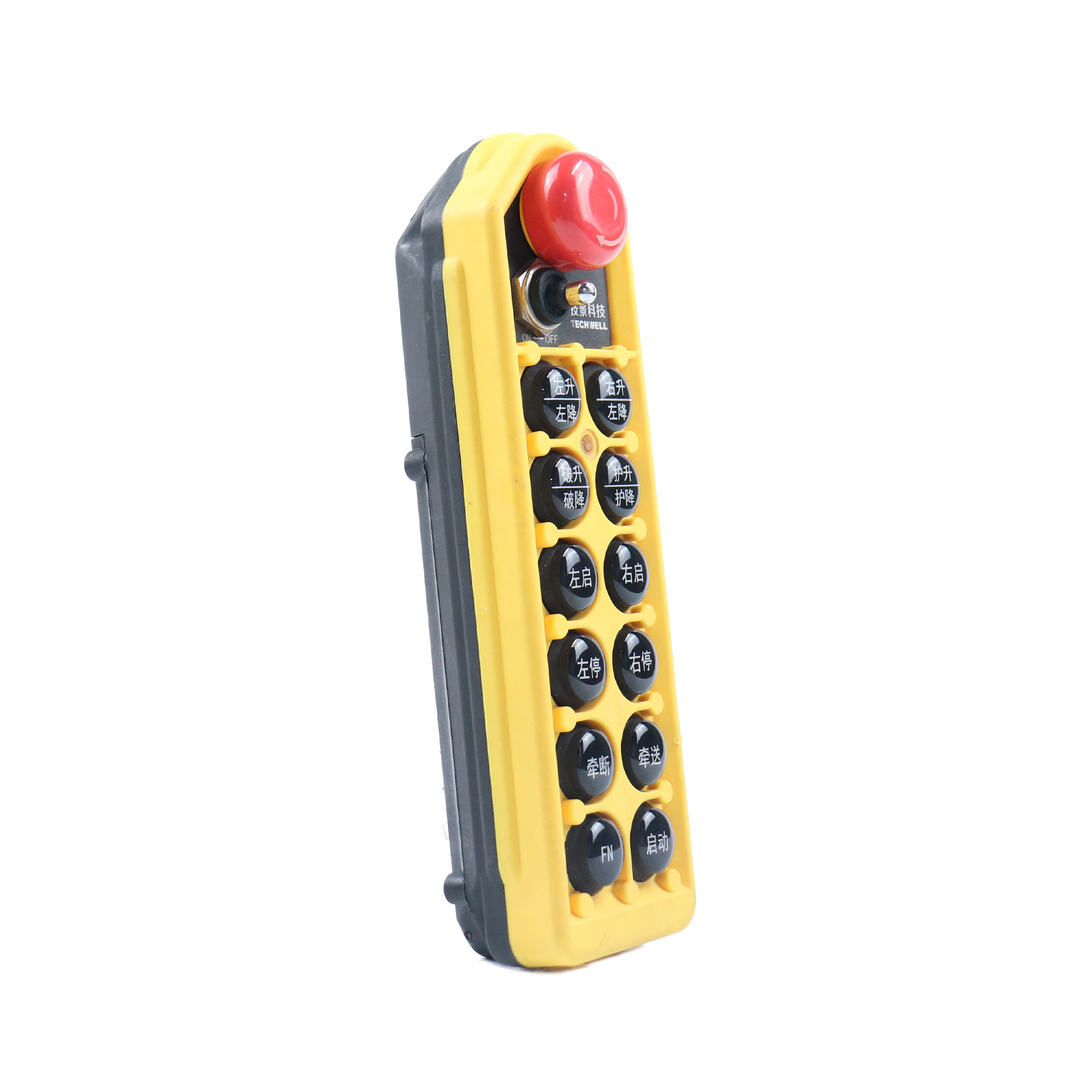

The FT110 handheld industrial remote control is equipped with 12 operation buttons and operates in single-speed mode. Designed specifically for cranes and electric hoists, the joystick on top can be configured for crane joystick controls and real-time communication, making it suitable for long-term use in harsh working conditions.
Techwell’s FT110 crane buttons and joystick controls are compatible with cranes of any brand and can be customized to meet specific needs.
The costs associated with wired crane controls—including both initial expenses and maintenance—should not be underestimated. Wireless industrial remote controls not only reduce these costs but also lower the failure rate of wired systems.
| Series | Handheld F Series |
| Model | FT |
| Size | 212×68×61 mm |
| Weight (excluding battery) | 0.36kg |
| Number of Keys | 12 |
| Material | Engineering Plastics |
| Protection Class | IP66 |
| Keypad Layout | Self-Resetting + Selector Switch |
| Power Supply | 6VDC/2000mA |
| Wireless Range | ≥150m |
| Operating Current | 30mA |
| Transmit Power | ≤10mW |
| Frequency Range | 433 MHz Band: 427.000 –436.300 MHz 470 MHz Band: 472.350 –485.775 MHz |
| Antenna Type | built-in |
| Operating Temperature Range | Temperature: -25 °C to 70 °C Humidity: 0% to 97% RH (non-condensing) |
| Optional Features | Selector Switch, Potentiometer, Display Screen |
| Transmitter Operation Modes | Combinations of Pushbutton and Rotary Switches |
| Dimensional Drawing |  |
